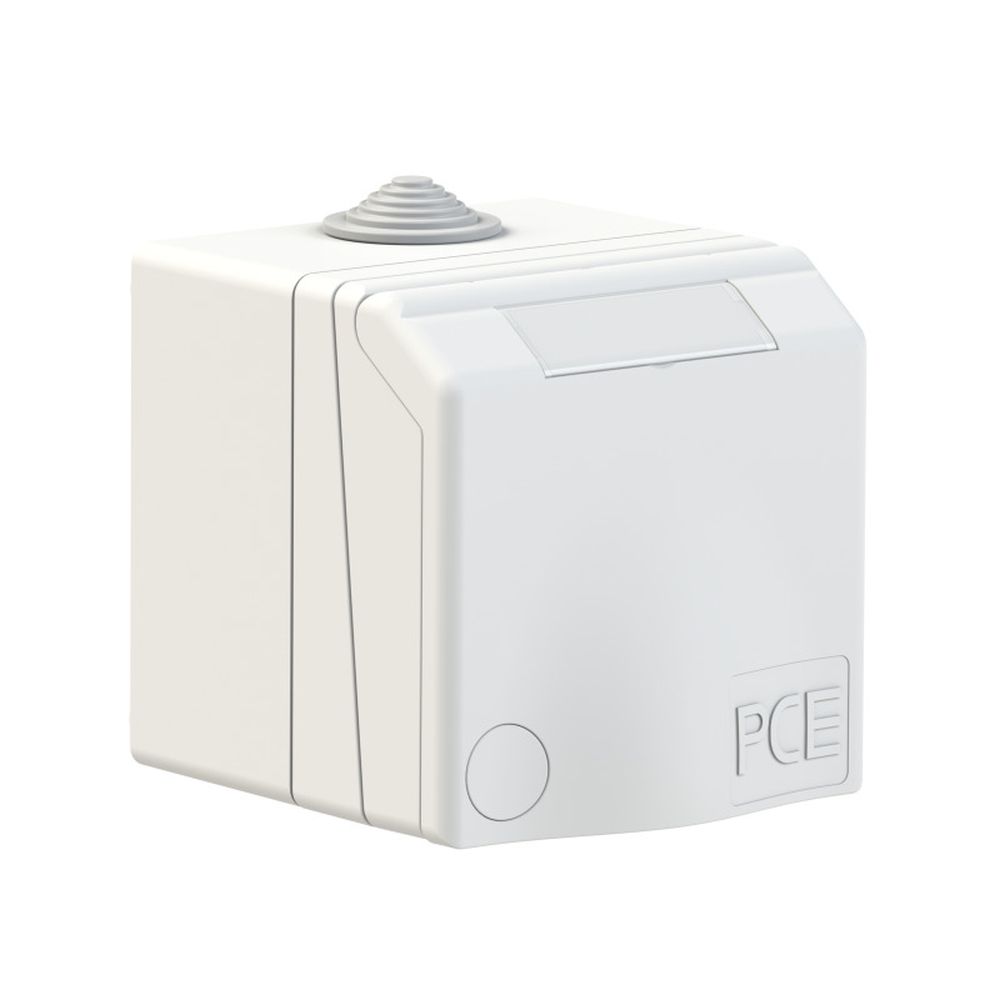

POWER SOCKET-OUTLET ONNLINE DESIGN16A 5P 6H 400V IP44 SUR
Product code
2441638
Power outlet unit for public space with outlet under a white protective cover. The product is suitable for locations where all outlet components are behind the protective cover and colored parts of power outlets are not to be exposed. Can be installed in a flush-mounted box with a separate collar. The internal diameter of the box must be 74 mm. The range includes a separate surface-mounted box, and a lock chamber is available as an accessory to lock the cover. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)CEE socket outlet (IEC 60309) (EC001321)
Mounting methodSurface mounted
IEC-amperage16 A
Number of poles5
Voltage according to EN 60309-2380-415 V (50+60 Hz) red
Clock hour position6 h
Identification colourWhite
RAL-number9016
Housing colourWhite
Degree of protection (IP)IP44
Connection systemScrewless terminal
Cable entryAnti-kink sleeve
MaterialPlastic
Contact materialCuZn
Surface treatment contactsNickel-plated
Type of fasteningInner lying mounting
Product codes
SAPDFP624
STK2441638
PLC2441638
GTIN/EAN6438056394370
Manufacturer part number865ON6V
Vendor material number865ON6V
Basic information
Package measurements (L x W x H)90 x 90 x 95 mm
Package volume0.77 l
Package weight0.32 kg
Base uniteach
Package units1 / 6
Package contents–
UNSPSC39121308
BrandONNLINE
VendorONNINEN OY
