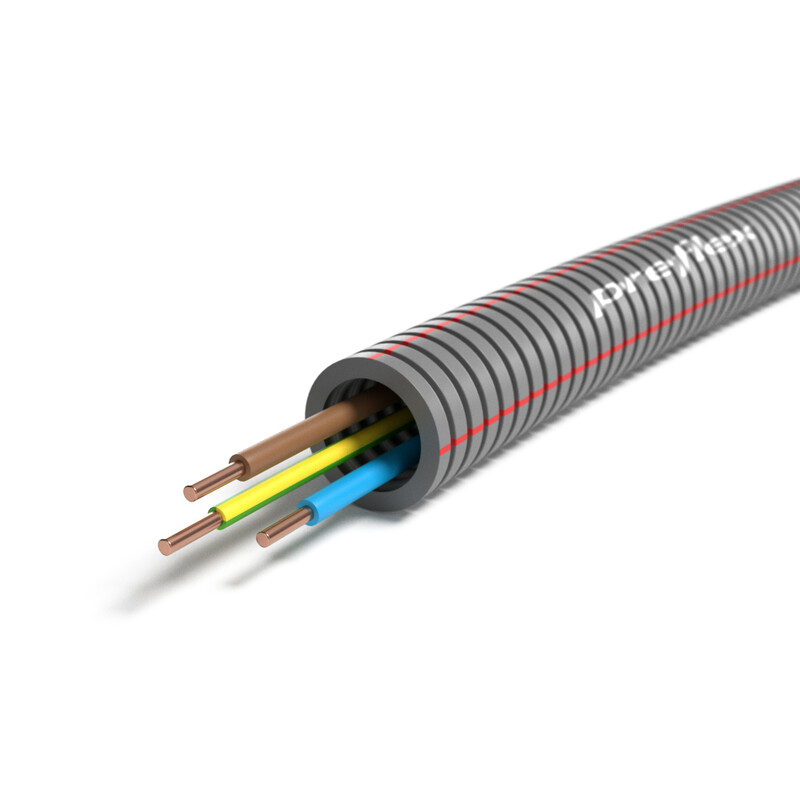

PREWIRED CABLE ONNLINE ML 3x2,5 S 20mm R100 Eca
Product code
0409468
For fixed installation within electrical and telecommunications networks. Also suitable for concrete casting.
Features
- Flame-retardant
- Maximum allowable operating temperature of the pipe: +90 °C
- Minimum recommended handling temperature: -15 °C during operation and installation
- Compression strength: medium
- Impact resistance: medium This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for moving application (EC003250)
AWG size0000
Nominal cross section conductor (AWG)2.5 kcmil
Nominal cross section conductor2.5 mm²
Conductor categoryClass 1 = solid
Number of cores3
Screen over stranding elementNone
Screen over strandingNone
Material core insulationPolyvinyl chloride (PVC)
Specification core insulationOther
Core identificationColour
Material outer sheathPolyvinyl chloride (PVC)
Specification material outer sheathOther
Reaction-to-fire according to EN 13501-6: ClassEca
Reaction-to-fire according to EN 13501-6: Smoke productionNone
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesNone
Product codes
SAPALT626
STK0409468
PLC0409468
GTIN/EAN6410004094686
Basic information
Package measurements (L x W x H)1000 x 0 x 0 mm
Package volume0.684 l
Package weight0.158 kg
Base unitMeter
Package units100 / 2000
Package contents–
UNSPSC24141510
BrandONNLINE
VendorONNINEN OY
Documents (3)
Brochures & documents
Environment and safety
Features
Made from PVCNo
Health Product DeclarationYes
Red list free certificationYes
