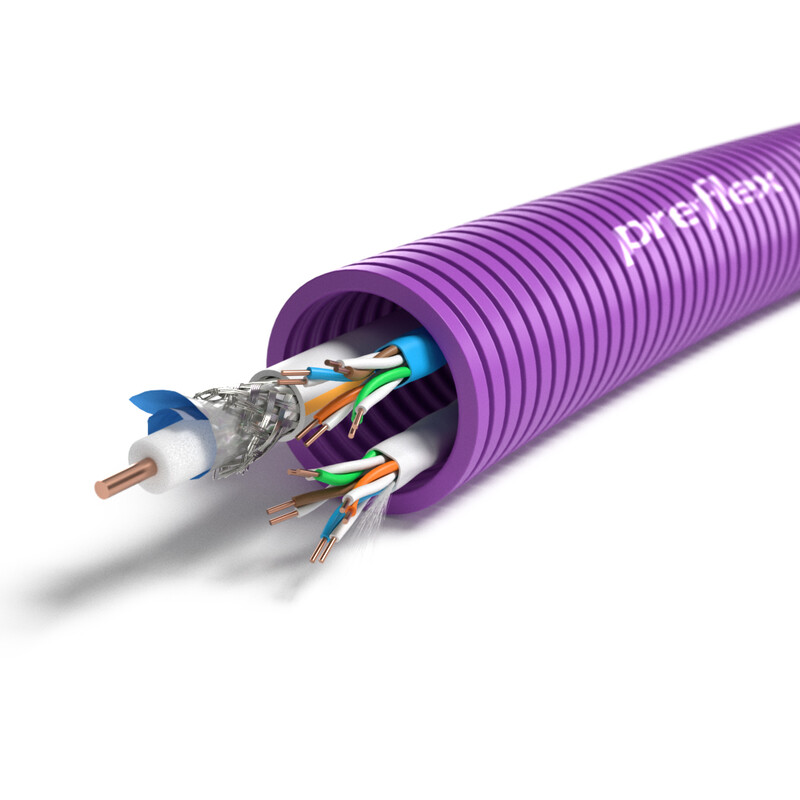

PREWIRED CONDUIT-HF ONNLINE 20/HF 2xCAT6 Dca+COAX Cu Cca

Cca antenna cable suitable also for concrete casting. Used as internal cable in communal antenna networks. Technical specifications - conductor copper 0.81±0.01 mm - inner insulation PE 3.70±0.20 mm - outer diameter 5.70 ±0.20 mm - outer sheath LSOH white - impedance 75 ?±3 - nominal capacitance 54±3 pF/m - shielding attenuation ?85 dB (1 GHz) - propagation speed 82 % +/- 3 - frequencies 5 - 3000 MHz CAT6 U/UTP Dca: Used as data transmission cable indoors. Conductor - solid bare copper - AWG 24 Insulation solid PE - diameter 0.85 ± 0.05 mm - pair 1: blue-white/blue - pair 2: orange-white/orange - pair 3: green-white/green - pair 4: brown-white/brown Outer sheath LSZH - thickness 0.40 mm - diameter 5.10 ± 0.25 - white RAL - 9003 Blue RAL - 5015 Electrical values - impedance 1-100 MHz 100 ± 15 ? - 100-250 MHz 100 ± 20 ? - DC Resistance @20°C < 95 Ohm/km - velocity factor 69% - compliant with standards FLUKE ISO CLASS E Permanent Link Standard - Dca (s2,d1,a1). This product description is an automated translation of the original Finnish description.
