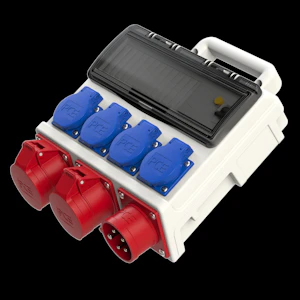

SUBCENTRE FOR WORKSITE OAK 16/216/4 RCD IP44
Product code
CYJ097
Compact portable distribution box suitable for use in various applications such as construction sites, electricians, agriculture, and gardens. All sockets protected by 30mA residual current devices. Made from impact-resistant durable plastic (PC/ABS). Self-closing plastic cover for socket protection. Equipped with a carrying handle and mounting holes for wall mounting.
Features
- Input: 5-pin/400V 16A connector 1 unit
- Output: 2-pin/230V Schuko Type F sockets 4 units
- Output: 5-pin/400V 16A power sockets 2 units
- Residual current device 30mA 1 unit
- Short-circuit withstand capacity Icc 6 kA
- Protection class IP44 This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Energy distributor for construction site (EC000484)
ModelDistributor cabinet
Rated voltage400 V
Rated current16 A
Number of CEE socket outlets (IEC 60309) 16 A / 24 V / 2P (L, N)0
Number of CEE socket outlets (IEC 60309) 16 A / 230 V / 3P (L, N, PE)0
Number of CEE socket outlets (IEC 60309) 16 A / 230 V / 5P (1, 2, 3, N, PE)0
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 4P (1, 2, 3, PE)0
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)2
Number of CEE socket outlets (IEC 60309) 32 A / 230 V / 4P (1, 2, 3, PE)0
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 4P (1, 2, 3, PE)0
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)0
Number of CEE socket outlets (IEC 60309) 63 A / 230 V / 4P (1, 2, 3, PE)0
Number of CEE socket outlets (IEC 60309) 63 A / 400 V / 5P (1, 2, 3, N, PE)0
Number of CEE socket outlets (IEC 60309) 125 A / 230 V / 4P (1, 2, 3, PE)0
Number of CEE socket outlets (IEC 60309) 125A / 400 V / 5P (1, 2, 3, N, PE)0
Product codes
SAPCYJ097
STKCYJ097
PLCCYJ097
GTIN/EAN6438056311315
Basic information
Package measurements (L x W x H)335 x 250 x 115 mm
Package volume9.631 l
Package weight2.2 kg
Base uniteach
Package units1 / 50
Package contents–
UNSPSC39121309
BrandONNLINE
VendorONNINEN OY
