BALL VALVE ORAS 400032 1 1/4 SK PN25
Product code
3713507

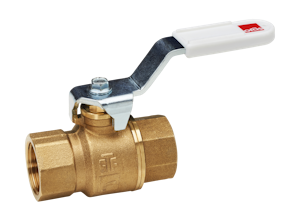

The valve is made from special brass resistant to zinc corrosion. The seals are made of PTFE and the handle is zinc-coated steel. The valve ball is coated with PTFE. The valve is intended for water and compressed air systems. DN size 32. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ball valve (EC011343)
Pressure classPN 25
Housing materialBrass
Material qualityDezincification resistant brass (DZR)
Nominal diameter connection 11 1/4 inch (32)
Connection 1Internal thread cylindrical BSPP-G (ISO 228-1)
Nominal diameter connection 21 1/4 inch (32)
Connection 2Internal thread cylindrical BSPP-G (ISO 228-1)
OperationLever handle
Housing construction1-part
Product codes
SAPAAO088
HPAC3713507
PLC3713507
GTIN/EAN6414150021732
Manufacturer part number400032
Vendor material number3713507
Basic information
Package measurements (L x W x H)100 x 60 x 59 mm
Package volume0.354 l
Package weight0.936 kg
Base uniteach
Package units1 / 10 / 250 / 750
Package contents–
UNSPSC40141607
BrandORAS
VendorORAS OY
The country of origin stated by the supplierFinland
