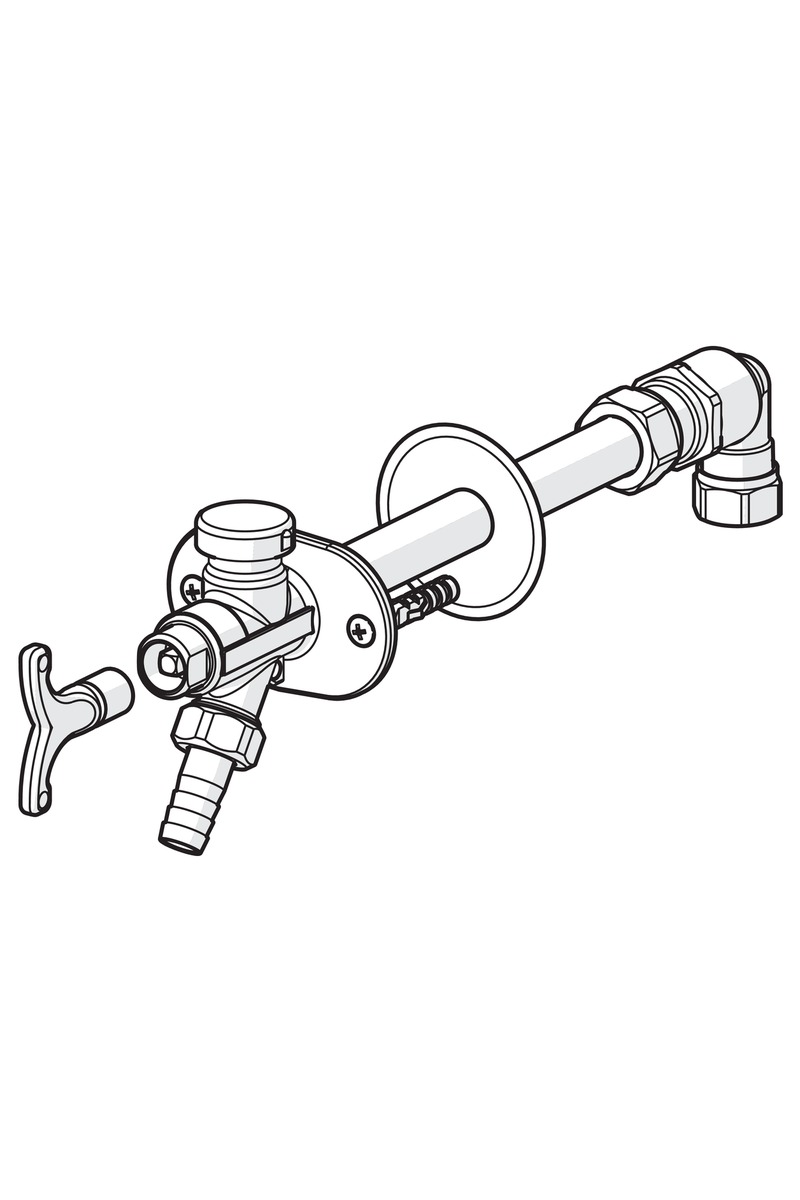

HYDRANT VALVE ORAS 431015 DN15x15mm L=250-450mm

The Oras water post valve 431015 DN15 is intended for water supply points outside single-family and row houses. The water post valve is type-approved. The water post valve is opened and closed by turning the key in the valve. The key can be removed from the valve when not in use. A garden hose can be attached to the water post valve; the hose connection size is Ø 14 mm. The water post valve has a check valve, shut-off valve, suction protection, and a 13 mm hose connection. The telescopic drill-equipped disc valve functions as the shut-off. The wall penetration pipe with Ø 18 mm is made of copper. The penetration pipe is attached to the outer casing of the water post valve. Installation: The water post valve connection type is pre-mixed or cold water connection. The connection pipe fitting is Ø 15 mm compression fitting. Installation is carried out according to the installation instructions. Wall thickness may be up to 450 mm. If the wall thickness is less than 250 mm, the length of the shaft and sliding shaft must be shortened by the corresponding amount (i.e., 250 mm – wall thickness = L), see installation instructions. Features:

• DN15
• warm water max. +80 °C
• operating pressure 50 - 1000 kPa
• wall thickness max. 450 mm
• type-approved

Maintenance: The following original and high-quality Oras spare parts are available for the Oras DN15 water post valve:

• water post key: LVI 6421873
• outer shaft DN15: LVI 6421866
• outer shaft DN15: LVI 6421944
• vacuum valve key: LVI 6421871
• vacuum valve: LVI 6421867
• outer casing DN15: LVI 6421869
• complete disc, DN15: LVI 6421874
• inner casing: LVI 6420654
• inner casing DN15: LVI 6421868

Also explore other high-quality Oras water post valves at Onninen's online store! This product description is an automated translation of the original Finnish description.
