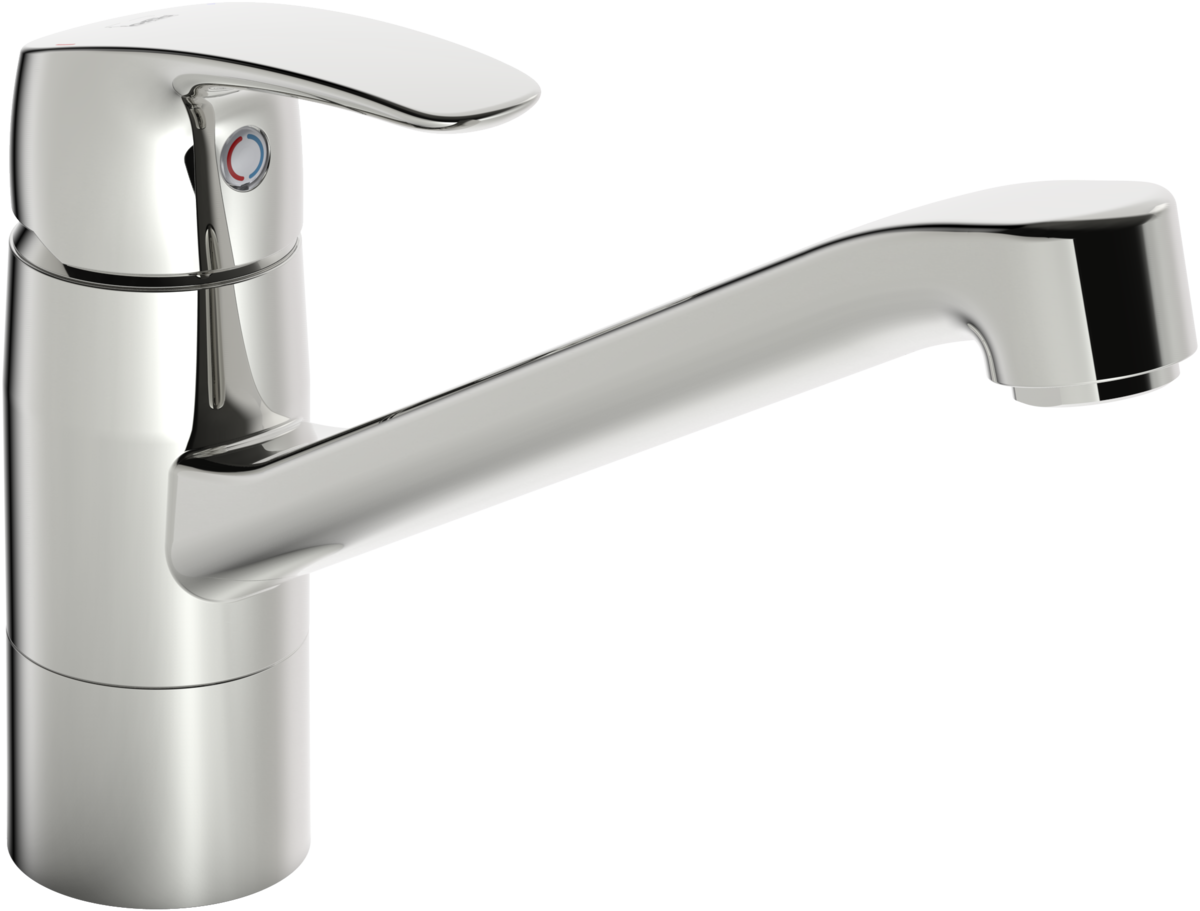

KITCHEN MIXER ORAS 1030FS-107 SAFIRA ECO

Oras Safira ECO 1030FS-107 is a kitchen faucet with a swivel spout capable of rotating 120° (can be limited to 40°–80°) and flexible supply hoses. A flow restrictor (7.0 l/min) enables low water consumption. This kitchen faucet meets the efficiency requirements for water use set by ECO Building. Features

• Green Building
• single-hole
• deck-mounted
• chrome
• swivel spout with adjustable rotation limit
• fixed aerator
• single lever handle with hot/cold symbols
• adjustable temperature and flow limit
• ø 40 mm control cartridge
• flexible supply hoses
• internal body made of zinc-resistant brass, 3S-Installation mounting system
• flow rate at 300 kPa (with flow restrictor): 0.11 l/s
• connection size: G3/8
• hot water: max. +70 °C
• material: brass
• operating pressure: 50 - 1000 kPa
• projection: 213 mm
• noise class: I (ISO 3822) Oras lab.
• KIWA SE: 1491

Replacement Parts

• handle: LVI 6420625
• cover cap: LVI 6420632
• locking nut: LVI 6420331
• control cartridge: LVI 6420301
• control cartridge, Green Building: LVI 6420733
• spout, L=210: LVI 6510259
• spout rotation limiter, 40° - 80°: LVI 6420574
• spout rotation limiter, 120°: LVI 6420642
• mounting screw, M8x1, L=130: LVI 6420637
• mounting kit: LVI 6420634
• aerator, M24x1, -105: LVI 6510075
• aerator, M24x1 STD HC B: LVI 6421620
• aerator, M24x1, -104: LVI 6420700
• bearing ring: LVI 6420620
• X-seal pack: LVI 6420263
• bearing ring: LVI 6420348
• base seal: LVI 6420646
• support plate, 100x60 mm: LVI 6420134

This product description is an automated translation of the original Finnish description.
