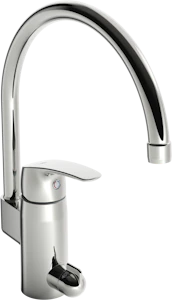

KITCHEN MIXER ORAS 1039F-104 SAFIRA ECO DWC

Oras Safira 1039F-104 is a kitchen faucet with a dishwasher valve and a swivel, high spout with 120° rotation (can be limited to 0° or 60°). The dishwasher valve features a ceramic operating valve (90° open - closed). A flow restrictor (3.4 l/min) enables low water consumption. The faucet meets the requirements for efficient water use set by Green Building. The faucet has flexible supply hoses.

Features

• connection type: flexible supply hoses
• dishwasher valve type: mechanical dishwasher valve
• lever/handle type: single operating lever/handle with hot/cold symbols
• mechanical components: ř 40 mm control unit
• special features: 3S-Installation mounting system
• spout type: swivel spout with rotation angle limitation capability
• color: chrome
• temperature controls: temperature and flow rate limitation capability
• flow rate at 300 kPa (with flow restrictor): 0.059 l/s
• pressure loss at flow rate (0.2 l/s): 240 kPa
• connection size: G3/8
• DN size (standard size): DN8
• hot water: max. +70 °C
• material: brass
• projection: 178 mm
• operating pressure: 50 - 1000 kPa
• noise class: I (ISO 3822)

Replacement Parts

• aerator, M22x1: LVI 6421610
• spout: LVI 6420394
• spout restrictor, 60°/0°: LVI 6420240
• spout restrictor, 120°: LVI 6420287
• spout restrictor, 60°/0°: LVI 6420169
• sealing kit: LVI 6420144
• operating lever: LVI 6420625
• protective cap: LVI 6420632
• locking nut: LVI 6420331
• control unit: LVI 6420301
• operating valve, G1/2: LVI 6420600
• dishwasher valve handle: LVI 6420657
• base seal: LVI 6420646
• support plate, 100x60mm: LVI 6420134
• mounting screw, M8x1, L=130: LVI 6420637
• mounting kit: LVI 6420634

This product description is an automated translation of the original Finnish description.
