KITCHEN MIXER ORAS 2839FN-107 OPTIMA DWV, 3 V ECO

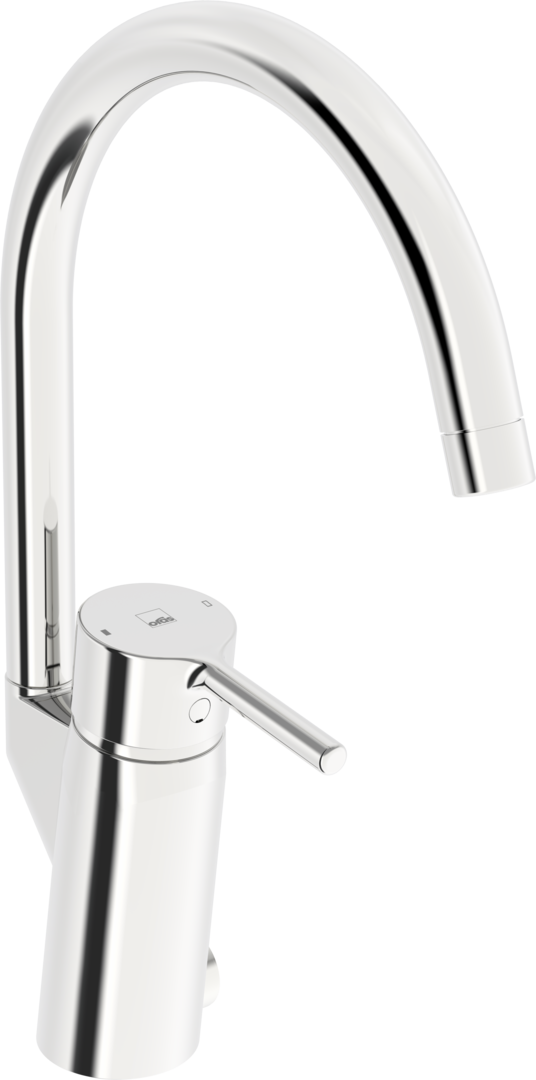

Oras Optima 2839FN-107 is a kitchen faucet with a high, swiveling spout and an electronic dishwasher valve (connected to cold water). The spout swivel angle is 120° (can be limited to 0° or 60°). The faucet is battery-powered at 3 V. It features a rod-shaped lever and flexible supply hoses. A flow restrictor (7.5 l/min) enables low water consumption. The faucet meets the requirements for efficient water use set by Green Building.

• spout type: aerator with integrated flow restrictor
• connection type: flexible supply hoses
• dishwasher valve type: electronic dishwasher valve
• lever/handle type: single operating lever/handle, rod-shaped lever, hot/cold symbols
• mechanical parts: ř 40 mm control unit
• spout type: swiveling spout
• color: chrome
• temperature controls: temperature and flow rate limitation capability
• dishwasher valve open time: 4 h / 12 h
• eco-flow at 300 kPa: 0.125 l/s
• flow at 300 kPa (with flow restrictor): 0.2 l/s
• backflow prevention (EN1717): EB
• connection size: G3/8
• hot water: max. +70 °C
• material: brass
• operating pressure: 50 - 1000 kPa
• battery: AA 1.5 V Lithium x 2
• Bluetooth version: 5.x (D060577)
• EU directives: Radio Equipment Directive 2014/53/EU, Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU, RoHS Directive 2011/65/EU
• EN standard: ETSI EN 301 489-1 V1.9.2, ETSI EN 300 328 v2.2.2, EN 61000-6-1:2007, EN 61000-6-3:2007+A1:2011+AC:2012, EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
• noise class: I (ISO 3822)
• protection class: IP 55

• aerator, M22x1 STD CC A (chrome): LVI 6510239
• high spout, L=208 (chrome): LVI 6510209
• operating lever (chrome): LVI 6420826
• logo plate: LVI 6420665
• protective cap (chrome): LVI 6420526
• locking nut: LVI 6420331
• control unit, Green Building: LVI 6420733
• limit stop, 120°: LVI 6420725
• spout seal kit: LVI 6510210
• push button, 3 V (chrome): LVI 6420670
• mounting plate, 100x60mm: LVI 6420134
• mounting plates with nuts: LVI 6420358
• control unit, 3 V, Bluetooth: LVI 6420676
• < This product description is an automated translation of the original Finnish description.
