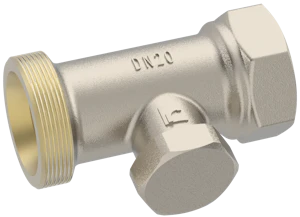

RETURN VALVE STRAIGHT ORAS 443520 STABILA PRO 3/4

Product code
4032036
Oras Stabila Pro valve for the return side of the radiator as a shut-off valve. Available in straight and angle valve models. The shut-off mechanism is located under the cap nut, which is removed with a 24 mm wrench. The cap nut also contains a seal, preventing any potential leakage from causing damage. Products are individually packed in plastic bags. The valve features a rising stem shut-off valve, operated with a 6 mm hex key. Turning counterclockwise opens the valve, and turning clockwise closes it. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Radiator foot valve (EC010866)
Size of radiator connection3/4 inch (20)
Size of pipe connection3/4 inch
ModelTailpiece/internal thread
Surface protectionNickel-plated
Kvs value1.7
Height34.5 mm

Product codes

SAPCNX624
HPAC4032036
PLC4032036
GTIN/EAN6414150098031
Manufacturer part number443520
Vendor material number4032036

Basic information

Package measurements (L x W x H)70 x 50 x 35 mm
Package volume0.123 l
Package weight0.235 kg
Base uniteach
Package units1 / 25
Package contents
UNSPSC40141604
BrandORAS
VendorORAS OY

Environment and safety

Manufacturer

NameOras Oy
Postal addressPL 40, 26101 Rauma, Finland
