SHOWER SYSTEM ORAS 7193N-33 OPTIMA STYLE BLACK

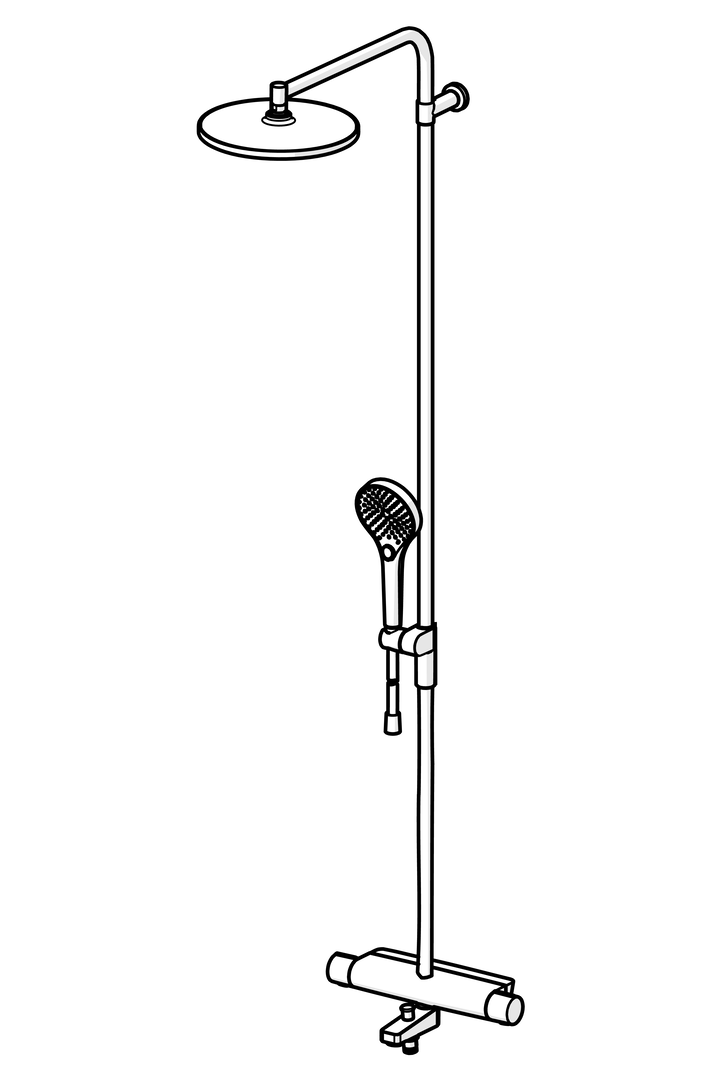

Oras Optima Style 7193N-33 is a matte black thermostatic rain shower mixer with a riser pipe, rain shower, and hand shower. The mixer features an EcoFlow flow regulator and temperature control. The handle has an easy-to-use switch for the riser pipe/rain shower, and the riser pipe has a lift switch for the hand shower. The temperature control handle includes a temperature limiter that can be bypassed by pressing a button. Removable drain tray for shower accessories. The hand shower has three adjustable settings, an easy-to-clean filter, and a shower holder. The mixer includes strainers and check valves.

Features

• connection type: direct connection to connectors, internal thread
• switch type: rotating switch, integrated into the flow control handle
• lever/handle type: temperature control handle, flow control handle, hot/cold symbols, Easy Grip, Eco function
• mechanical parts: ceramic flow control valve, thermostatic control unit, check valves, strainers
• shower functions: 3 shower functions
• shower components: pivoting shower arm, hand shower, lockable in center position, MagShelf removable shelf with magnetic attachment, adjustable shower holder, swivel rain shower/overhead shower, shower hose (1750 mm), shower riser, silicone nozzles (easy to clean), shower hose rotates from base (no twisting), adjustable installation
• shower type: Normal – Even and soft water stream, Jet – Powerful and swirling water stream, Rain – Even and powerful water stream
• special features: extendable, anti-twist hose connector
• riser pipe type: removable riser pipe
• color: matte black
• temperature control: safety button at 38 °C, structure preventing surface overheating

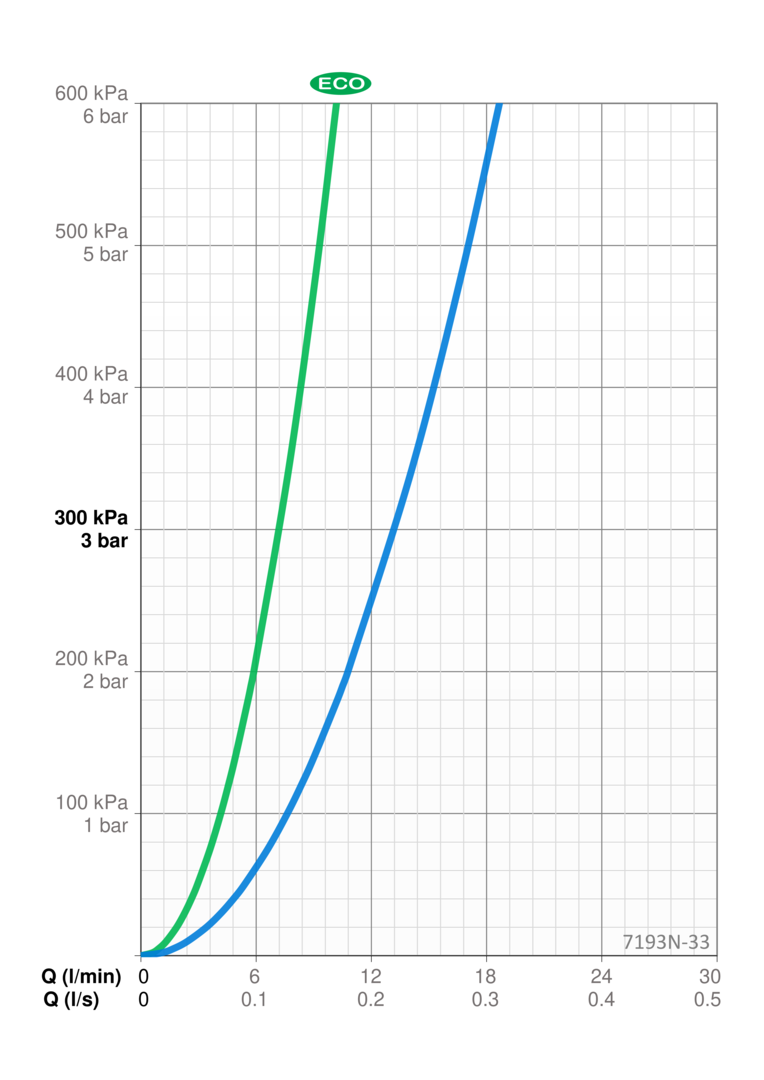

• Eco flow at 300 kPa: 0.12 l/s
• flow at 300 kPa: 0.22/0.22 l/s
• pressure loss at flow (0.2 l/s): 250 kPa
• backflow prevention (EN1717): EB
• connection size: G3/4
• hot water: max. +65 °C

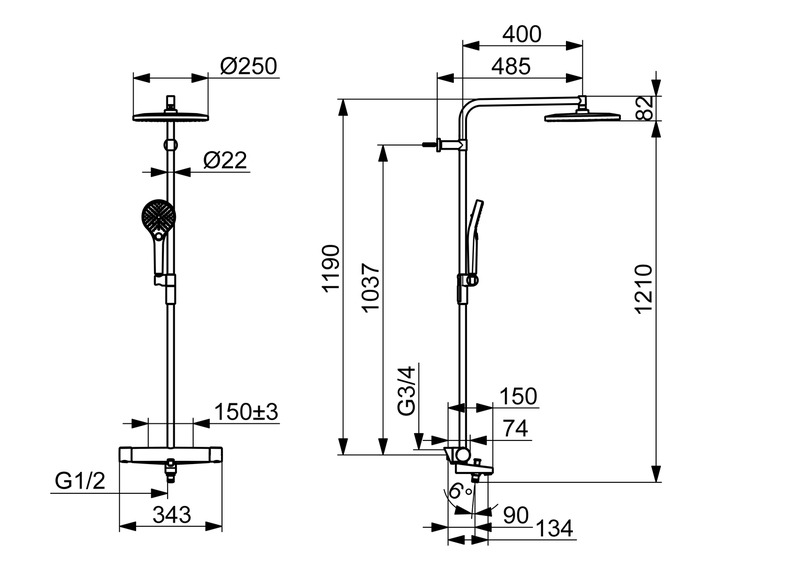

• installation width: 150 ± 3 mm
• material: brass/plastic
• projection: 131 mm
• operating pressure: 100 - 1000 kPa
• EN standard: EN1111
• noise class: I (ISO 3822)

Replacement Parts

• wall bracket (matte black): LVI 6510332
• shower riser slide (matte black): LVI 6510326
• shelf (matte black): LVI 6510324
• sealing washer, G3/4, DN20: LVI 6422179
• flow control handle (matte black): LVI 6420809
• switch: LVI 6422112
• thermostatic control unit: LVI 6421004
• O-ring set: LVI 6421003
• temperature control handle (matte black): LVI 6420807
• nozzle, STD M24x1 LL C (matte black): LVI 6510334
• check valve, DN15: LVI 6422014

This product description is an automated translation of the original Finnish description.
