SHOWER SYSTEM ORAS 7193N-81 OPTIMA STYLE BRONZE

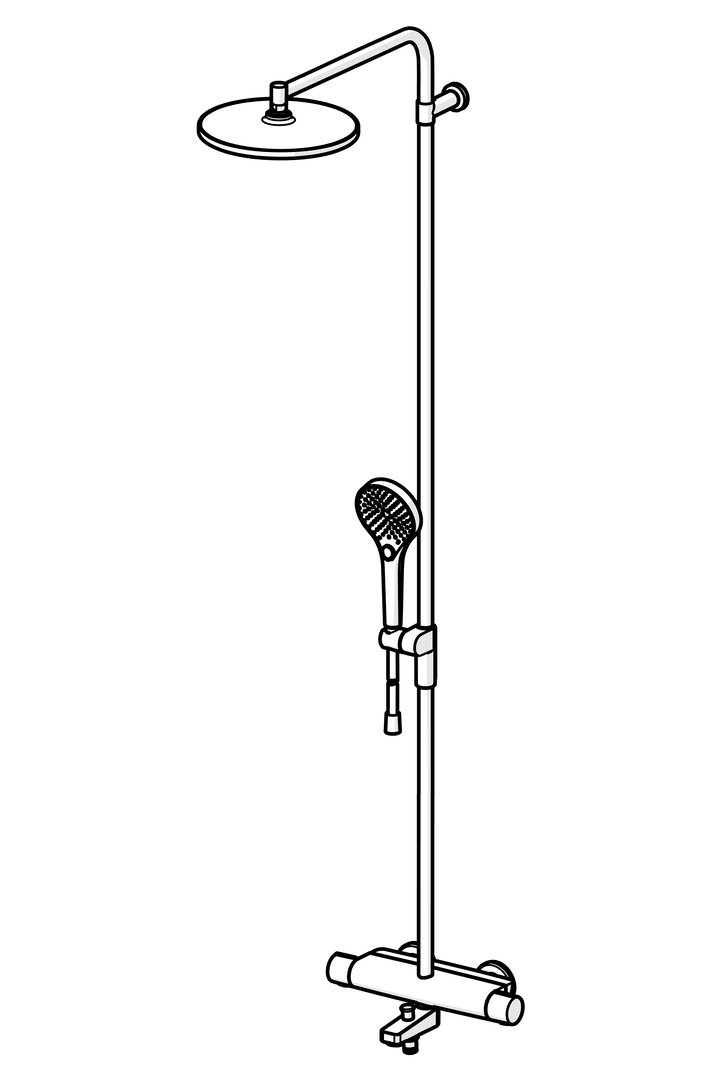

Oras Optima Style 7193N-81 is a brushed bronze colored thermostatic rain shower faucet with a shower arm, rain shower, and hand shower. The faucet features a temperature control and EcoFlow flow regulator. The handle has an easy-to-use switch for the shower arm/rain shower, and the shower arm has a lift switch for the hand shower. The temperature control handle includes a temperature limiter that can be bypassed by pressing a button. A removable shower tray for accessories is included. The hand shower has three adjustable settings, an easy-to-clean filter, and a shower holder. The faucet includes strainers and check valves.

Features

• connection type: direct connection to connectors, internal thread
• switch type: rotating switch, integrated into the flow control handle
• lever/handle type: temperature control handle, flow control handle, hot/cold symbols, Easy Grip, eco-function
• mechanical components: ceramic flow control valve, thermostatic control unit, check valves, strainers
• shower functions: 3 shower functions
• shower components: articulated shower arm, hand shower, lockable center position, MagShelf removable shelf with magnetic attachment, adjustable shower holder, swivel rain shower/overhead shower, shower hose (1750 mm), shower pipe, silicone nozzles (easy to clean), shower hose rotates from base (no twisting), adjustable installation
• shower type: Normal – Even and soft water stream, Jet – Strong and swirling water stream, Rain – Even and strong water stream
• special features: retractable, anti-twist hose connector
• shower arm type: removable shower arm
• color: brushed bronze
• temperature controls: safety button at 38 °C, structure preventing surface overheating
• eco-flow at 300 kPa: 0.12 l/s
• flow at 300 kPa: 0.22/0.22 l/s
• pressure loss at flow (0.2 l/s): 250 kPa
• backflow prevention (EN1717): EB
• connection size: G3/4
• hot water: max. +65 °C

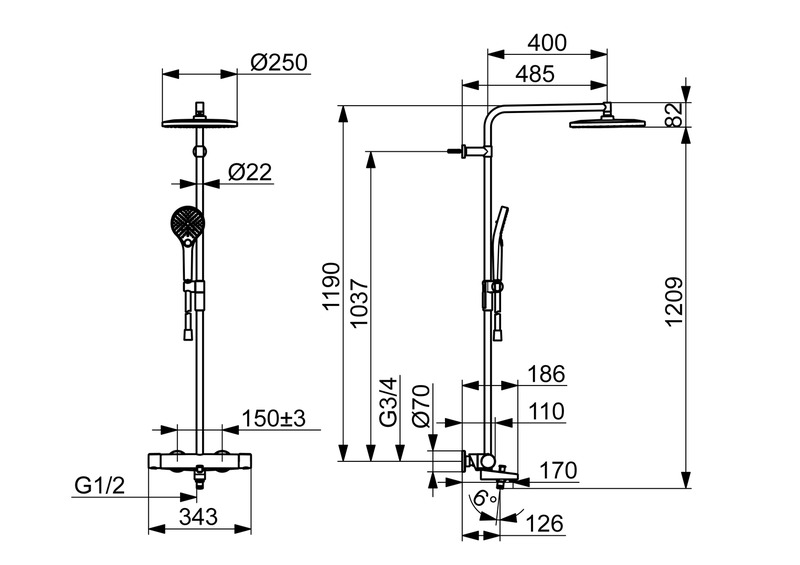

• installation width: CC150± 3 mm
• material: brass/plastic
• projection: 131 mm
• operating pressure: 100 - 1000 kPa
• EN standard: EN1111
• noise class at 0.2 l/s: I (ISO 3822)

Spare Parts

• seal, G3/4, DN20: LVI 6422179
• switch: LVI 6422112
• check valve, DN15: LVI 6422014
• thermostatic control unit: LVI 6421004
• O-ring set: LVI 6421003

This product description is an automated translation of the original Finnish description.
