UTILITY ROOM MIXER ORAS 1016-105 SAFIRA ECO
Product code
6219186
Oras Safira ECO 1016-105 is a wall-mounted auxiliary faucet. The flow restrictor (4.2 l/min) enables low water consumption. The auxiliary faucet meets the requirements for efficient water use in ECO Building.
Features- handle type: single lever with hot/cold symbols
- mechanical parts: ř 40 mm control unit
- spout type: fixed spout
- color: chrome
- temperature control: temperature and flow rate limitation capability
- flow rate at 300 kPa (with flow restrictor): 0.062 l/s
- backflow prevention (EN1717): AA
- connection size: G3/4
- warm water: max. +80 °C

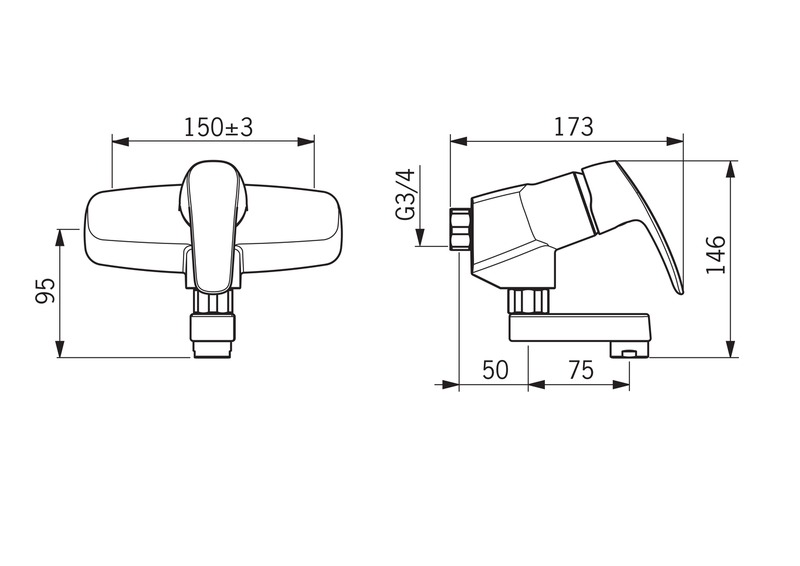

- installation width: CC150 ± 3 mm
- material: brass
- projection: 125 mm
- operating pressure: 50 - 1000 kPa
- noise class: I (ISO 3822) Oras lab.
- STF certificate: VTT-RTH-00091-17
- aerator, M28x1: LVI 6421640
- lever: LVI 6420625
- protective cap: LVI 6420616
- locking nut: LVI 6420331
- control unit: LVI 6420301
Product details
Technical specifications
Product class (ETIM)Washbasin mixing tap (EC011328)
ModelMechanical
Type of gripSingle-grip
Type of electronic operating methodOther
Self-closingno
Type of temperature controlManually operated
Material tapBrass
Surface protectionChromium-plated
Surface treatmentPolished
Basic colourChrome
Accent colourChrome
MountingWall
Centre distance150 mm
Connection supplyOther
Connection size supply3/4 inch (20)
Spout modelFixed, bottom
Product codes
SAPCVL201
HPAC6219186
PLC6219186
GTIN/EAN6414150100024
Manufacturer part number1016-105
Vendor material number6219186
Basic information
Package measurements (L x W x H)200 x 165 x 95 mm
Package volume3.135 l
Package weight1.4 kg
Base uniteach
Package units1 / 10 / 80 / 240
Package contents–
UNSPSC30181702
BrandORAS
VendorORAS OY
The country of origin stated by the supplierFinland
Documents (10)
Certificates
Brochures & documents
Links
Environment and safety
Sustainability categories
Circular economy
Water saving
Features
Availability of spare parts after discontinuation (years)10
Flow rate at 3 bar (l/min)4.2
Type ApprovalYes
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)10.738
GWP, uniteach
Source for GWP dataEPD
