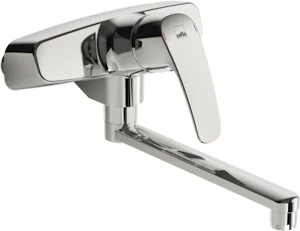

UTILITY ROOM MIXER ORAS 1036-104 SAFIRA ECO

Oras Safira ECO 1036-104 is a wall-mounted auxiliary faucet with a swivel spout (200 mm). The flow restrictor (3.4 l/min) enables low water consumption. The faucet meets the requirements for efficient water use set by Green Building.

Features

• lever/handle type: single lever/handle, hot/cold symbols
• mechanical parts: ř 40 mm control unit
• spout type: swivel spout
• color: chrome
• temperature controls: temperature and flow rate limitation capability
• flow rate at 300 kPa (with flow restrictor): 0.056 l/s
• backflow prevention (EN1717): AA
• connection size: G3/4
• hot water: max. +80 °C
• material: brass
• projection: 200 mm
• operating pressure: 50 - 1000 kPa
• noise class: I (ISO 3822) Oras lab.
• STF certificate: VTT-RTH-00091-17

Replacement parts for the faucet

• lever (chrome): LVI 6420625
• protective cap (chrome): LVI 6420616
• locking nut: LVI 6420331
• control unit: LVI 6420301

Replacement parts for the spout

• O-ring, 13.6x2.4: LVI 6421897
• spacer pin (10 pcs), 18/20.6 (Chrome): LVI 6421614
• retaining ring (10 pcs): LVI 6421612
• aerator, M22x1 (Chrome): LVI 6421610

This product description is an automated translation of the original Finnish description.
