UTILITY ROOM MIXER ORAS 1036-105 SAFIRA ECO
Product code
6219185

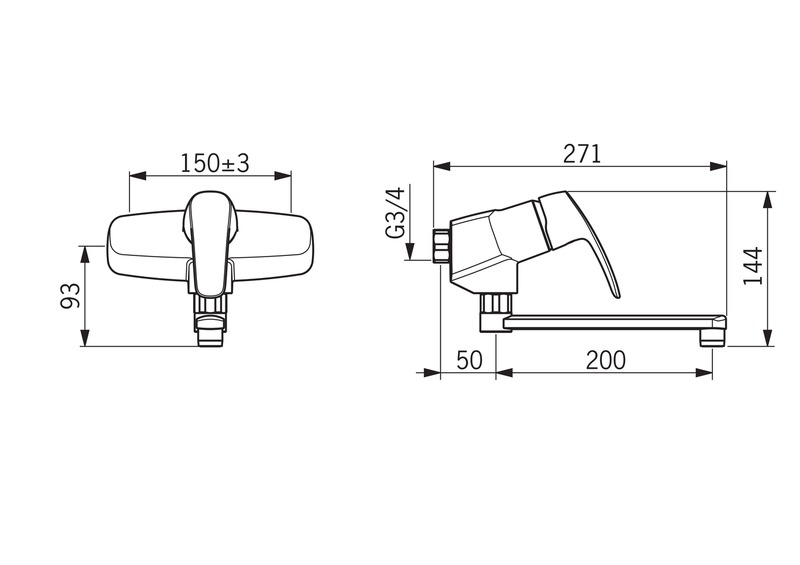

Oras Safira ECO 1036-105 is a wall-mounted auxiliary faucet with a swivel spout (200 mm). The flow restrictor (4.2 l/min) enables low water consumption. Meets the requirements for efficient water use set by ECO Building.
Features- handle type: single lever with hot/cold symbols
- mechanical components: ř 40 mm control unit
- spout type: swivel spout
- color: chrome
- temperature controls: temperature and flow rate limitation capability
- flow rate at 300 kPa (with flow restrictor): 0.07 l/s
- backflow prevention (EN1717): AA
- connection size: G3/4
- hot water: max. +80 °C
- installation width: CC150 ± 3 mm
- material: brass
- projection: 200 mm
- operating pressure: 50 - 1000 kPa
- noise class: I (ISO 3822) Oras lab.
- STF certificate: VTT-RTH-00091-17
- lever: LVI 6420625
- protective cap: LVI 6420616
- locking nut: LVI 6420331
- control unit: LVI 6420301
- O-ring, 13.6x2.4: LVI 6421897
- spacer bush (10 pcs), 18/20.6: LVI 6421614
- retaining ring (10 pcs): LVI 6421612
- aerator, M22x1: LVI 6421610
Product details
Technical specifications
Product class (ETIM)Washbasin mixing tap (EC011328)
ModelMechanical
Type of gripSingle-grip
Type of electronic operating methodOther
Self-closingno
Type of temperature controlManually operated
Material tapBrass
Surface protectionChromium-plated
Surface treatmentPolished
Basic colourChrome
Accent colourChrome
MountingWall
Centre distance150 mm
Connection size supply3/4 inch (20)
Spout modelRotating, bottom
Type of spoutOther
Product codes
SAPCVL204
HPAC6219185
PLC6219185
GTIN/EAN6414150100000
Manufacturer part number1036-105
Vendor material number6219185
Basic information
Package measurements (L x W x H)210 x 185 x 160 mm
Package volume6.216 l
Package weight1.68 kg
Base uniteach
Package units1 / 10 / 40 / 120
Package contents–
UNSPSC30181702
BrandORAS
VendorORAS OY
The country of origin stated by the supplierFinland
Documents (10)
Certificates
Brochures & documents
Links
Environment and safety
Sustainability categories
Circular economy
Water saving
Features
Availability of spare parts after discontinuation (years)10
Flow rate at 3 bar (l/min)4.2
Type ApprovalYes
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)12.8856
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
