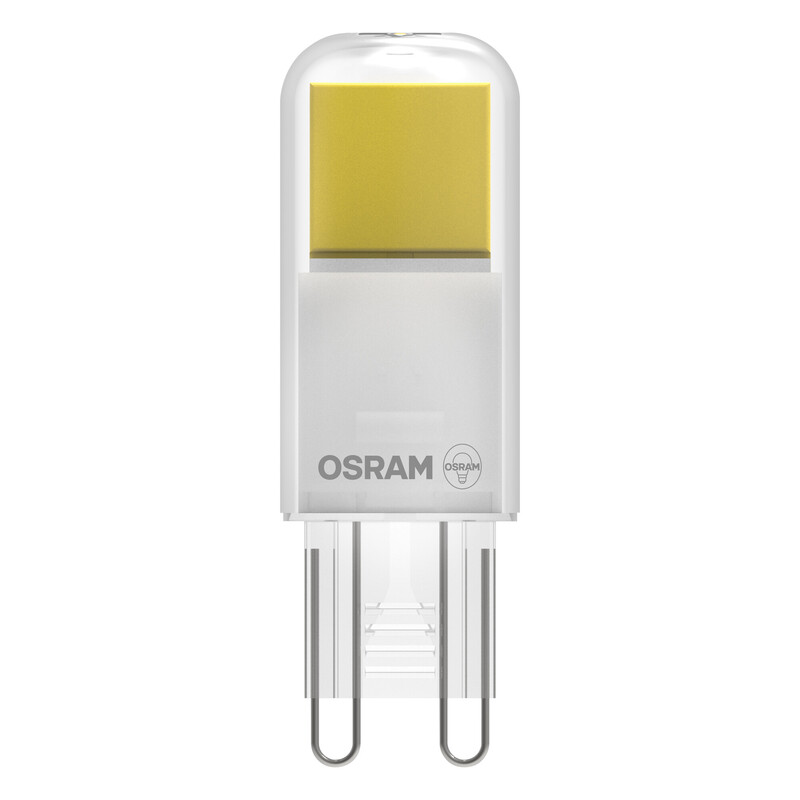

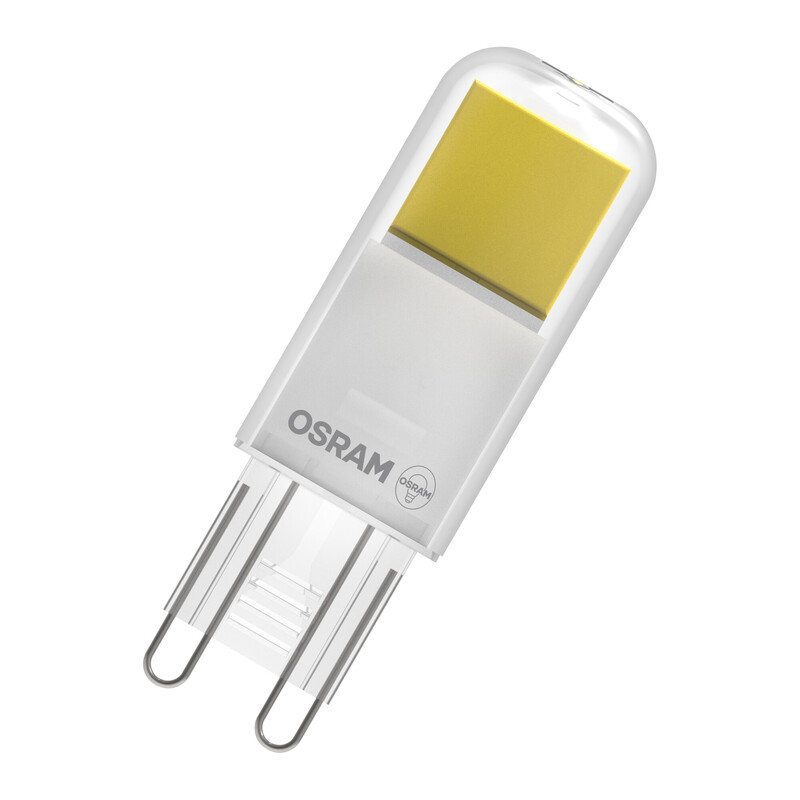

LED-LAMP PARATHOM SPECIAL PIN 2,6W/827 320LM G9 GL
Product code
4731900
<b>OSRAM LED PIN</b> - from this product family you can find a long-lasting and energy-efficient LED small lamp as a replacement for the most common pin halogen lamps. LED small lamps may be larger than the old halogen lamps, so make sure the LED small lamp fits in the fixture. <br /><br /><b>Key technical specifications:</b><br /><ul><li>Luminous flux: 320 lm (equivalent to 30 W)</li>
<li>Base: Pin</li>
<li>Base material: clear glass</li>
<li>Color temperature: 2700 K</li>
<li>Color rendering index: over 80</li>
<li>Dimmable: No</li>
<li>Base: G9 / 220…240 V</li>
<li>Power: 2.6 W</li>
<li>Luminous efficacy: 123 lm/W</li>
<li>Energy efficiency class: E</li>
<li>Dimensions (length/diameter): 52 x 17 mm</li>
<li>Operating temperature: -20…+40 C</li>
<li>Service life: 15,000 hours (L70/B50 +25 C)</li>
<li>Warranty: 3 years</li>
</ul> This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220 - 240 V
Nominal current21 - 21 mA
Power factor0.4
Lamp power2.6 - 2.6 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastno
Luminous flux320 - 320 lm
Rated luminous flux according to IEC 62612320 lm
Lamp efficacy123 lm/W
Colour rendering index CRI80-89
Lamp shapeOther
Filament lampno
Type of glass/coverClear
Colour of light according to EN 12464-1Warm white < 3300 K
Product codes
SAPDEZ366
STK4731900
PLC4731900
GTIN/EAN4099854248009
Manufacturer part number4099854248009
Vendor material number4731900
Basic information
Package measurements (L x W x H)20 x 49 x 95 mm
Package volume0.093 l
Package weight0.015 kg
Base uniteach
Package units1 / 6 / 630 / 6300
Package contents–
UNSPSC39101628
BrandOSRAM
VendorLEDVANCE OY
Documents (7)
Certificates
Brochures & documents
Links
Environment and safety
Sustainability categories
Circular economy
Energy efficiency
Features
Fully recyclable packagingYes
Warranty (years)3
Incandescent, halogen or fluorescent lightingNo
Energy efficiency classE
Packaging made of recycled materialsYes
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
