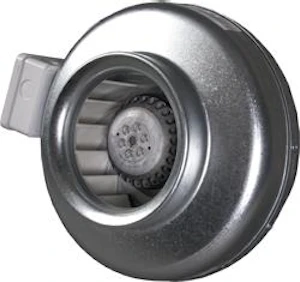

DUCT FAN CK 125 C1
Product code
8014708
High-performance and reliable compact fan with high capacity and efficiency and low noise level. The fan has backward-curved blades. The external rotor motor features maintenance-free sealed ball bearings and is highly energy efficient. To comply with ERP 2018 regulations, a separate speed controller must be used to adjust fan speed. Speed control can be achieved with either a variable frequency drive or an electronic speed controller, sold separately.
Features- Integrated motor protection
- Terminal box protection class is IP 54
- Blower housing is made of galvanized steel sheet
- Fan is designed for installation in duct systems
- Fan connected to a duct can be installed outdoors or in humid environments
- Fan is easy to install in any position
- Voltage 230 V / 50 Hz / 1 ph
- Power 60 W, 0.26 A
- Rotational speed 2530 r.p.m.
- Maximum operating temperature 80 C°
- Sound pressure level at 3 meters distance: 38 dB(A)
- Duct connection size 125 mm. Maximum airflow 113 l/s
- Maximum pressure 337 Pa
- Mounting to duct via duct connectors, sold separately
- Fan does not include mounting feet (these are not necessarily required).
Product details
Technical specifications
Product class (ETIM)Duct fan (EC011013)
Housing materialSteel
Air volume at pressure 20.076 m³/h
Pressure 250 Pa
Connection voltage230 V
Diameter housing125 mm
Product codes
SAPCOO312
HPAC8014708
PLC8014708
GTIN/EAN6415880147082
Manufacturer part number7000040
Vendor material number7000040
Environment and safety
Features
Availability of spare parts after discontinuation (years)10
Power (W)60
Energy efficiency classC
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)10.92
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000426
