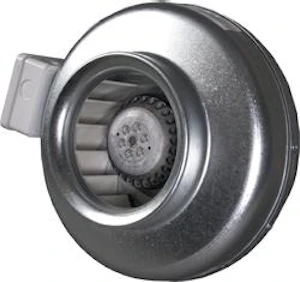

DUCT FAN CK 160 C1
Product code
8014712
High-performance and reliable compact fan with high capacity and efficiency and low noise level. The fan has backward-curved blades. The external rotor motor features maintenance-free sealed ball bearings and is highly energy efficient. To comply with ERP 2018 regulations, a separate speed controller must be used to adjust fan speed. Speed control can be achieved with either a variable frequency drive or an electronic speed controller, sold separately.
Features- Integrated motor protection
- Connection box protection class is IP 54
- Blower housing is made of galvanized steel sheet
- Fan is designed for installation in duct systems
- Fan connected to duct can be installed outdoors or in humid environments
- Fan is easy to install in any position
- Voltage 230 V / 50 Hz / 1 ph
- Power 108 W, 0.47 A
- Rotational speed 2560 rpm
- Maximum operating temperature 75 °C
- Sound pressure level at 3 meters distance: 43 dB(A)
- Duct connection size 160 mm. Maximum air volume 213 l/s
- Maximum pressure 361 Pa
- Mounting to duct via duct connectors, sold separately
- Fan does not include mounting feet (these are not necessarily required).
Product details
Technical specifications
Product class (ETIM)Duct fan (EC011013)
Housing materialSteel
Air volume at pressure 20.108 m³/h
Pressure 250 Pa
Connection voltage230 V
Diameter housing160 mm
Product codes
SAPCOO314
HPAC8014712
PLC8014712
GTIN/EAN6415880147129
Manufacturer part number7000050
Vendor material number7000050
Environment and safety
Features
Availability of spare parts after discontinuation (years)10
Power (W)108
Energy efficiency classC
