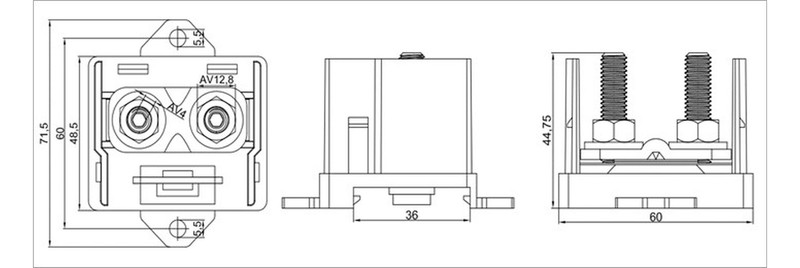

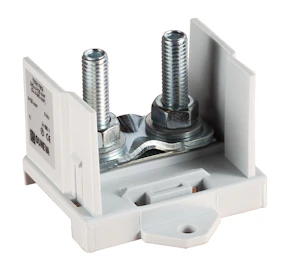

BRANCHING BLOCK CU 4-240 mm2
Product code
1912004
Branching platforms are used for branching and connecting copper conductors in electrical equipment and devices. The platforms are easy to install, and all models can be mounted either with screws or directly onto a DIN rail. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve2-120 mm²
Connectable conductor cross section fine-strand with cable end sleeve2-120 mm²
Connectable conductor cross section multi-wired2-120 mm²
Rated current In425 A
Rated voltage690 V
Type of electrical connection 1Screw connection
Mounting methodOther
Material insulation bodyThermoplastic
Operating temperature80-80 °C
Closing plate requiredno
ColourGrey
Internally connected stagesyes
Product codes
SAPANG673
STK1912004
PLC1912004
GTIN/EAN6410019120042
Manufacturer part numberVG02-0007
Vendor material number1912004
Basic information
Package measurements (L x W x H)60 x 70 x 50 mm
Package volume0.21 l
Package weight0.1 kg
Base uniteach
Package units1 / 30
Package contents–
UNSPSC43221702
BrandOUNEVA
VendorOUNEVA OY
The country of origin stated by the supplierFinland
