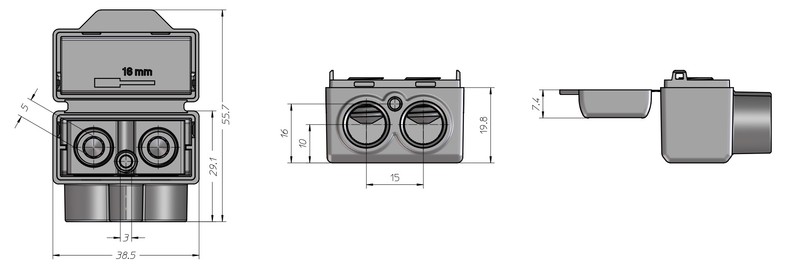

BRANCHING CONNECTOR OPK AL 2x50 / CU 2x35, 1,5-6 YE/GR
Product code
1914286
<b>OPK - Column Mount</b><br /> 1-pole OPK - column mount is intended for branching connections of electrical devices and equipment. The connector has two branching cable entries for cables up to 50 mm˛ and one conductor entry for wires of 1.5-6 mm˛. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Low current connector (EC000306)
ModelTap branch
Colour insulationGrey
Transparentno
Material insulationPolyamide (PA)
Grease filling against corrosionyes
Nominal cross section1.5-50 mm²
Max. number of cores3
Interrupt free shiftingno
Product codes
SAPDFM862
STK1914286
PLC1914286
GTIN/EAN6410019142860
Manufacturer part numberVC02-0076
Vendor material number1914286
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.087 l
Package weight0.038 kg
Base uniteach
Package units18
Package contents–
UNSPSC39121421
BrandOUNEVA
VendorOUNEVA OY
The country of origin stated by the supplierFinland
Documents (6)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.3002
GWP, uniteach
Source for GWP dataEPD
