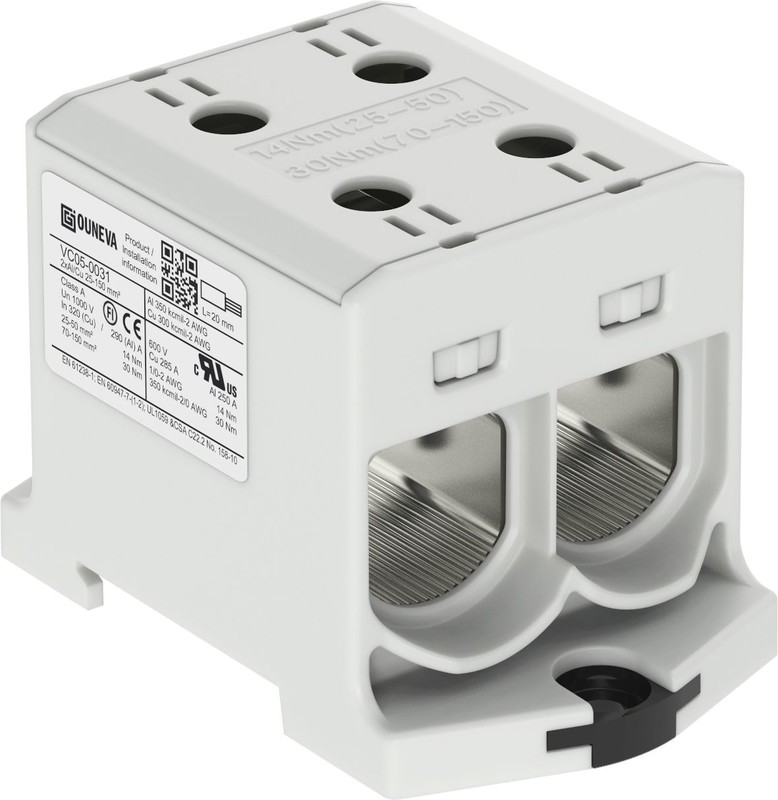

BRANCHING CONNECTOR OTL 2xAL/CU, 25-150mm2 GREY
Product code
1914297
DIN-rail/screw mounting, 1-pole branching connector
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve25-120 mm²
Connectable conductor cross section fine-strand with cable end sleeve25-120 mm²
Connectable conductor cross section solid-core25-150 mm²
Connectable conductor cross section multi-wired25-150 mm²
Rated current In640 A
Rated voltage1000 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level2
Suitable for conductor materialAluminium/copper
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-25-80 °C
Width51 mm
Product codes
SAPCKZ276
STK1914297
PLC1914297
GTIN/EAN6410019142976
Manufacturer part numberVC05-0211
Vendor material number1914297
Basic information
Package measurements (L x W x H)83 x 51 x 53 mm
Package volume0.224 l
Package weight0.17 kg
Base uniteach
Package units50
Package contents–
UNSPSC39121421
BrandOUNEVA
VendorOUNEVA OY
The country of origin stated by the supplierFinland
Documents (6)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0119
GWP, uniteach
Source for GWP dataEPD
