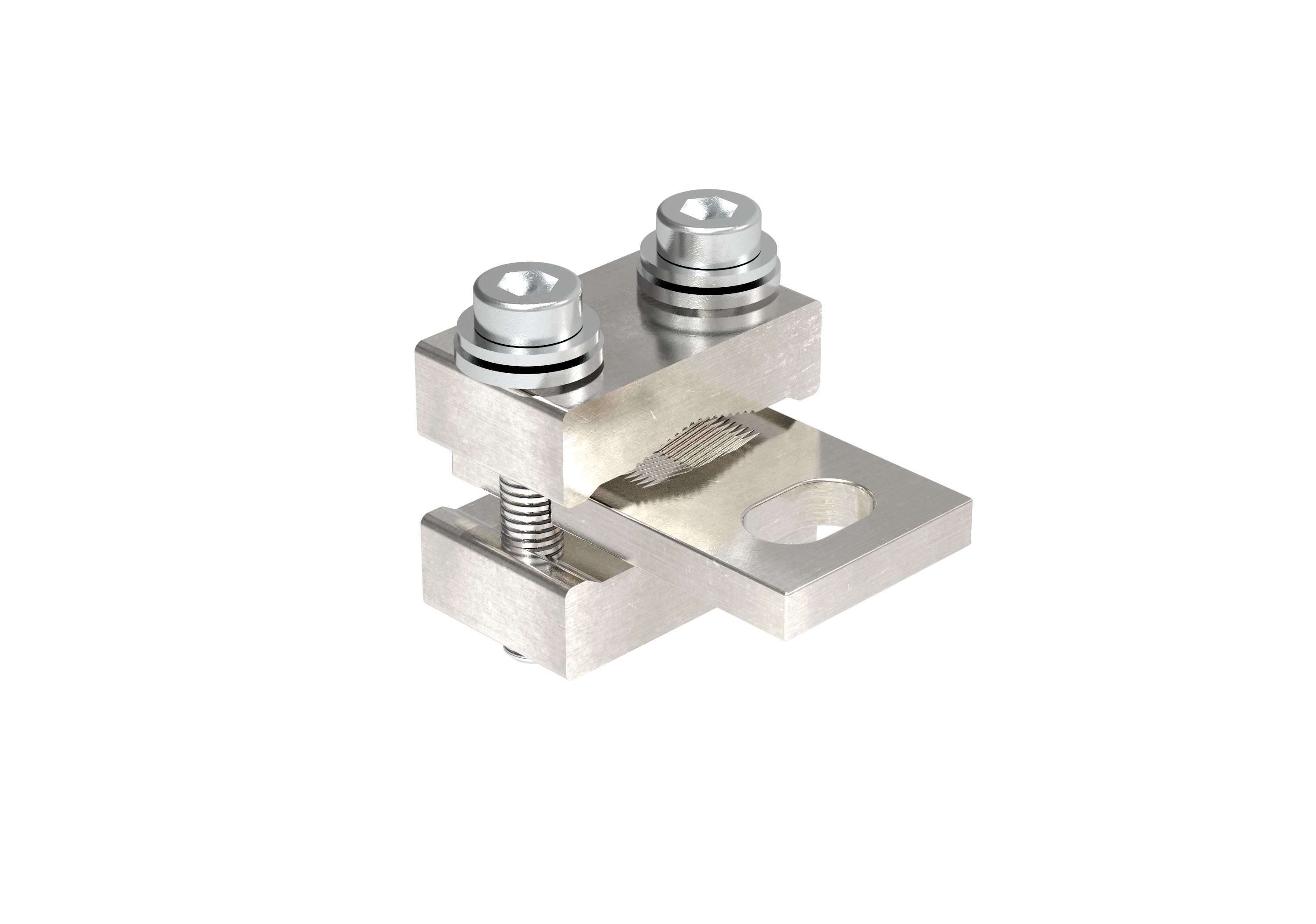

BUSBAR CONNECTOR Al/Cu 2x25-150 mm2
Product code
5040323
Connection terminal
Used for connecting Al/Cu 2x25-150 mm² conductors to busbars in switchgear and equipment. The terminal bar is made of tinned copper and the compression pads are tinned aluminum. Fastened with M8 screw. Designed for switches up to max. 160 A. This product description is an automated translation of the original Finnish description.
Used for connecting Al/Cu 2x25-150 mm² conductors to busbars in switchgear and equipment. The terminal bar is made of tinned copper and the compression pads are tinned aluminum. Fastened with M8 screw. Designed for switches up to max. 160 A. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Branch terminal (EC001062)
Nominal cross section main conductor, SE25-150 mm²
Nominal cross section main conductor, SM25-150 mm²
Nominal cross section branch conductor, SE/RE25-150 mm²
Nominal cross section branch conductor, SM/RM25-150 mm²
Material main conductorAluminium/copper
Material branch conductorAluminium/copper
Terminal insulatedno
Clamping channel opening main conductorOne side open
Clamping channel opening branch conductorOne side open
Surface protectionTinned
Type of connectionScrew connection
Product codes
SAPCET687
STK5040323
PLC5040323
GTIN/EAN6410050403234
Manufacturer part numberVC06-0071
Vendor material number5040323
Basic information
Package measurements (L x W x H)45 x 40 x 35 mm
Package volume0.063 l
Package weight0.09 kg
Base uniteach
Package units1 / 30
Package contents–
UNSPSC39121717
BrandOUNEVA
VendorOUNEVA OY
The country of origin stated by the supplierFinland
