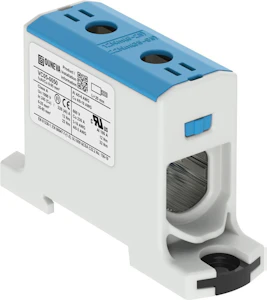

CONNECTOR 1XAL/CU, 6-95MM2 BLUE
Product code
1914113
OTL universal connector
OTL universal connectors are designed for connecting and branching aluminum and copper cables. The connector body is tin-plated aluminum. The housing is made of UL94 V0-rated polyamide. This product description is an automated translation of the original Finnish description.
OTL universal connectors are designed for connecting and branching aluminum and copper cables. The connector body is tin-plated aluminum. The housing is made of UL94 V0-rated polyamide. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve6-70 mm²
Connectable conductor cross section fine-strand with cable end sleeve6-70 mm²
Connectable conductor cross section solid-core6-95 mm²
Connectable conductor cross section multi-wired6-95 mm²
Rated current In245 A
Rated voltage1000 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level1
Suitable for conductor materialAluminium/copper
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-25-80 °C
Width25 mm
Product codes
SAPALT512
STK1914113
PLC1914113
GTIN/EAN6410019141139
Manufacturer part numberVC05-0050
Vendor material number1914113
Basic information
Package measurements (L x W x H)83 x 25 x 50 mm
Package volume0.104 l
Package weight0.07 kg
Base uniteach
Package units1 / 24
Package contents–
UNSPSC39121421
BrandOUNEVA
VendorOUNEVA OY
The country of origin stated by the supplierFinland
Documents (7)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0049
GWP, uniteach
Source for GWP dataEPD
