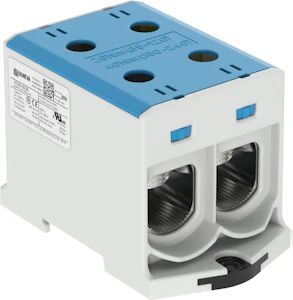

CONNECTOR 2XAL/CU, 35-240MM2 BLUE
Product code
1914134
OTL universal connectors are designed for connecting and branching aluminum and copper cables. The connector body is tin-plated aluminum and the housing is made of UL94 V0-rated polyamide.
Note. The rated current information in the Technical Specifications section is given for copper (Cu). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve35-185 mm²
Connectable conductor cross section fine-strand with cable end sleeve35-185 mm²
Connectable conductor cross section solid-core35-240 mm²
Connectable conductor cross section multi-wired35-240 mm²
Rated current In850 A
Rated voltage1000 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level2
Suitable for conductor materialAluminium/copper
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-25-80 °C
Width60 mm
Product codes
SAPALT533
STK1914134
PLC1914134
GTIN/EAN6410019141344
Manufacturer part numberVC05-0038
Vendor material number1914134
Basic information
Package measurements (L x W x H)105 x 60 x 65 mm
Package volume0.41 l
Package weight0.333 kg
Base uniteach
Package units1 / 12
Package contents–
UNSPSC39121421
BrandOUNEVA
VendorOUNEVA OY
The country of origin stated by the supplierFinland
