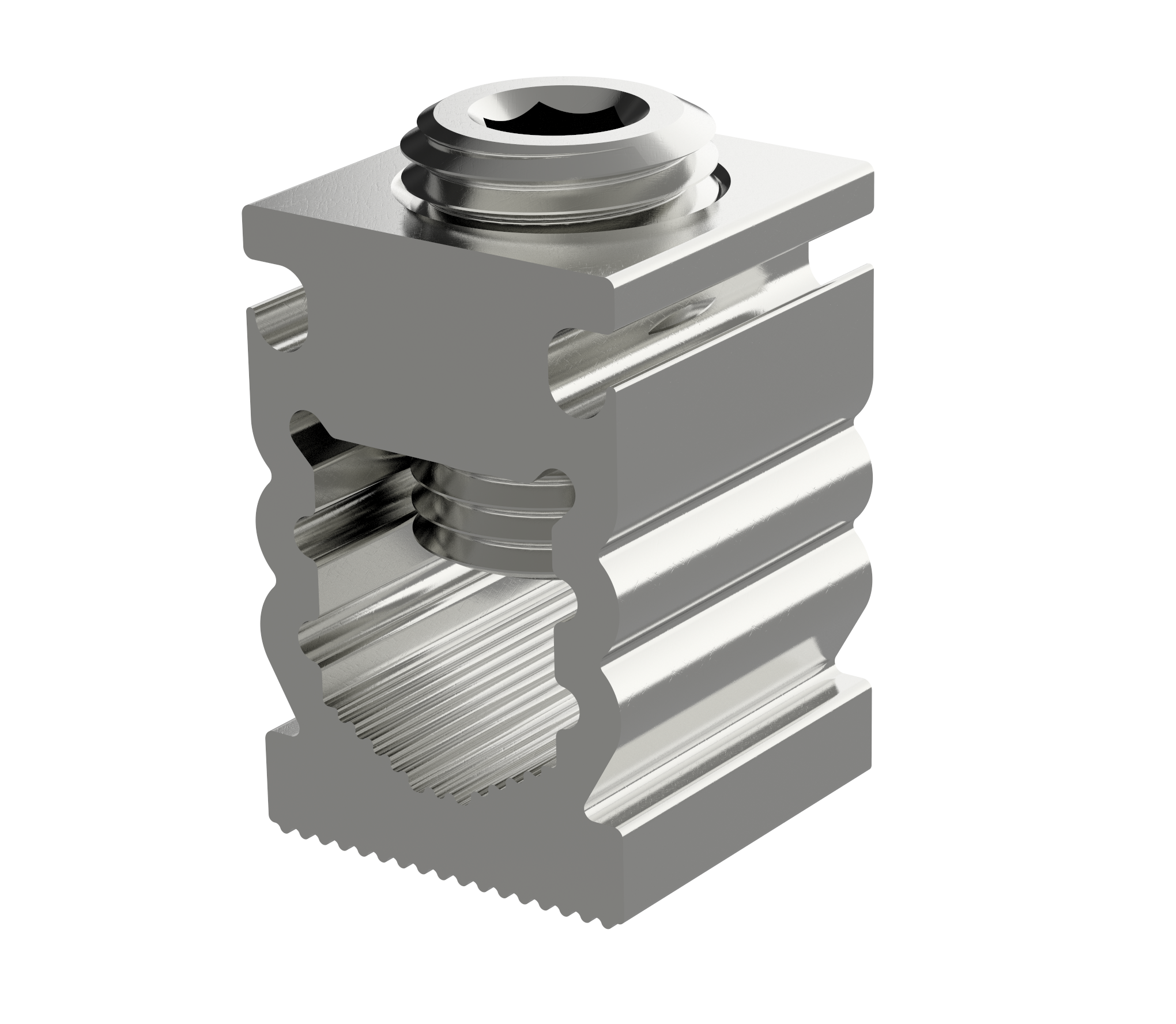

DEVICE CONNECTOR 1XAL/CU 16-95 MM2
Product code
5202401
Floor connector 1x95
Connector made of tin-plated aluminum. This product description is an automated translation of the original Finnish description.
Connector made of tin-plated aluminum. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Single- and multi-pole terminal strip (EC001284)
Explosion-tested version 'Ex e'no
Connectable conductor cross section fine-strand without cable end sleeve6-70 mm²
Connectable conductor cross section fine-strand with cable end sleeve6-95 mm²
Connectable conductor cross section solid-core6-95 mm²
Connectable conductor cross section multi-wired6-95 mm²
Rated current In245 A
Rated voltage690 V
Type of electrical connection 1Screw connection
Number of poles1
Number of clamp positions per pole1
Mounting methodDirect mounting
Material insulation bodyNone
Operating temperature80 - 80 °C
Halogen freeyes
Width20 mm
Product codes
SAPASE195
STK5202401
PLC5202401
GTIN/EAN6410052024017
Manufacturer part numberVC06-0011
Vendor material number5202401
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume1.56 l
Package weight0.015 kg
Base uniteach
Package units50
Package contents–
UNSPSC39121703
BrandOUNEVA
VendorOUNEVA OY
The country of origin stated by the supplierFinland
