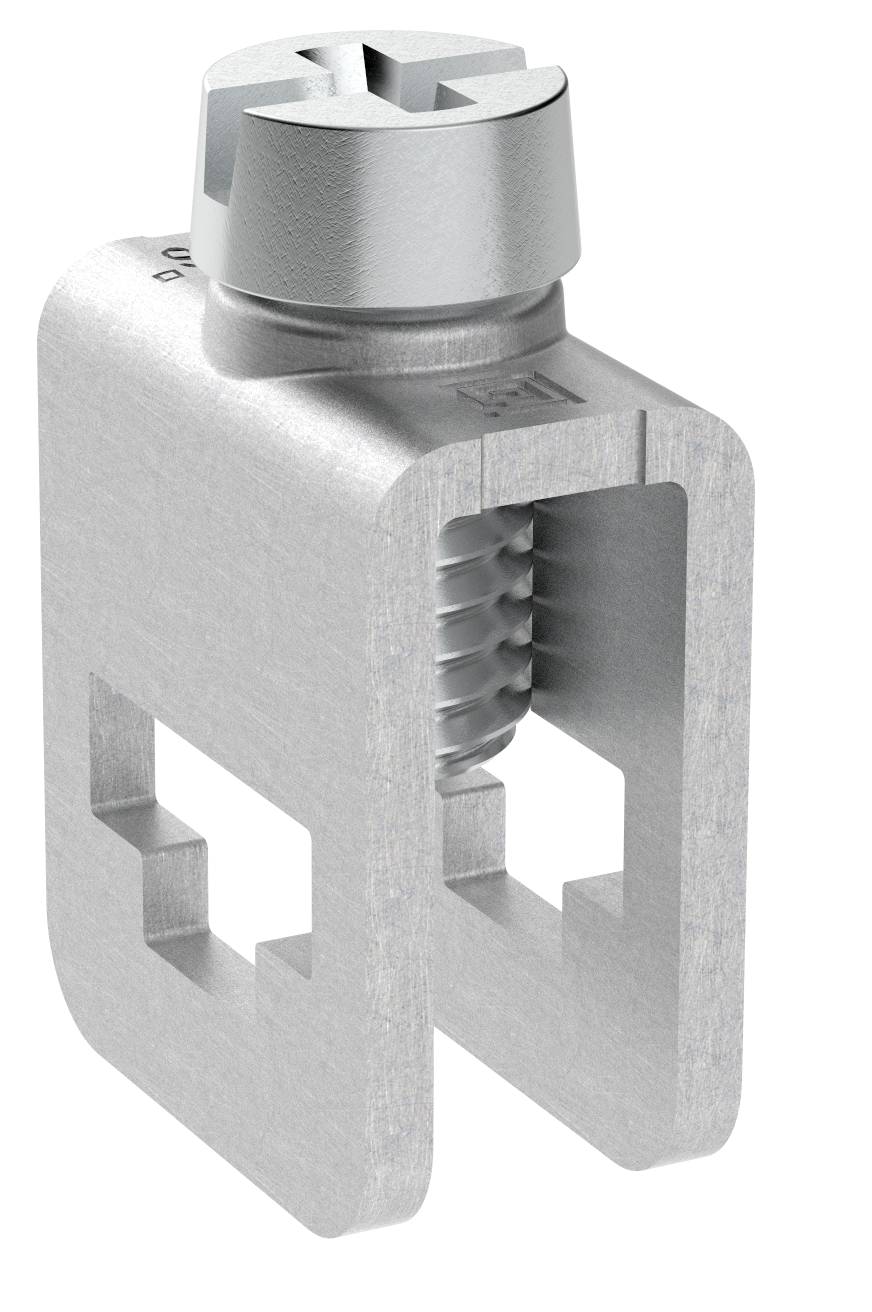

EARTH CONNECTOR 16 mm2 CU, M6 x 10 SCREW
Product code
1914219
Cu-tunnel connector
The connector is suitable for 5x5 copper bars and conductors of 0.75-16 mm². This product description is an automated translation of the original Finnish description.
The connector is suitable for 5x5 copper bars and conductors of 0.75-16 mm². This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ground terminal block (EC000901)
PEN function possibleyes
Connectable conductor cross section fine-strand without cable end sleeve0.75-16 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.75-16 mm²
Connectable conductor cross section solid-core0.75-16 mm²
Connectable conductor cross section multi-wired0.75-16 mm²
Type of electrical connection 1Screw connection
Number of levels1
Number of clamp positions per level1
Mounting methodOther
Material insulation bodyNone
ColourOther
Product codes
SAPCGG469
STK1914219
PLC1914219
GTIN/EAN6410019142198
Manufacturer part numberVI06-0141
Vendor material number1914219
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.02 l
Package weight0.007 kg
Base uniteach
Package units100 / 1000
Package contents–
UNSPSC39121421
BrandOUNEVA
VendorOUNEVA OY
The country of origin stated by the supplierFinland
