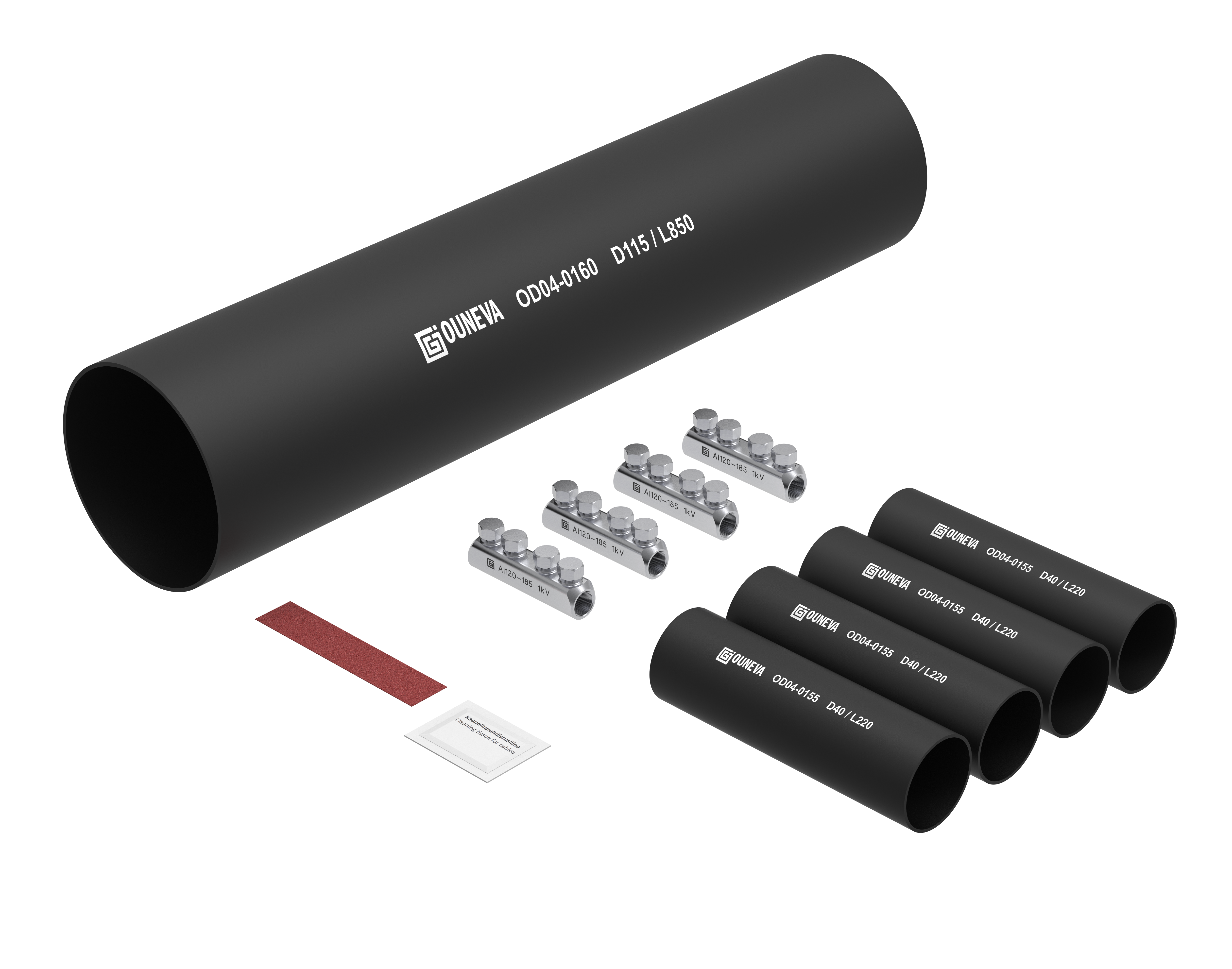

JOINT KIT 1 kV Joint kit 120-185 mm2
Product code
5201290
The package contains four splices, four adhesive wire terminals, one adhesive cable terminal, sandpaper, and a cable cleaning strip.
Purpose
Extension of 4-conductor <1 kV voltage aluminum cables.
Manufacturing materials
Terminals: Aluminum
Heat shrink tubes: Modified Polyethylene
Standards
EN 61238-1:2003, FI-certified terminals This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Straight-through joint (EC001169)
Rated voltage U0/U (Um)Other
ModelHeat-shrink
Insulating materialPlastic
For connection of paper- with plastic insulated cablesno
Number of conductors4
Nominal cross section conductor120-185 mm²
Mining sector approvalno
With concentric shieldingno
Suitable forOther
Connection accessories includedScrew connector
Halogen freeno
Product codes
SAPCFM081
STK5201290
PLC5201290
GTIN/EAN6410052012908
Manufacturer part numberVB04-0025
Vendor material number5201290
Basic information
Package measurements (L x W x H)860 x 200 x 100 mm
Package volume17.2 l
Package weight1.37 kg
Base uniteach
Package units1 / 50
Package contents–
UNSPSC39121718
BrandOUNEVA
VendorOUNEVA OY
The country of origin stated by the supplierFinland
Documents (6)
Images
Brochures & documents
Links
Environment and safety
Features
Fully recyclable packagingRecyclable
Cr (VI) freeYes
