JOINT KIT 1 kV Joint kit 16-50+6-25 mm²
Product code
5201287

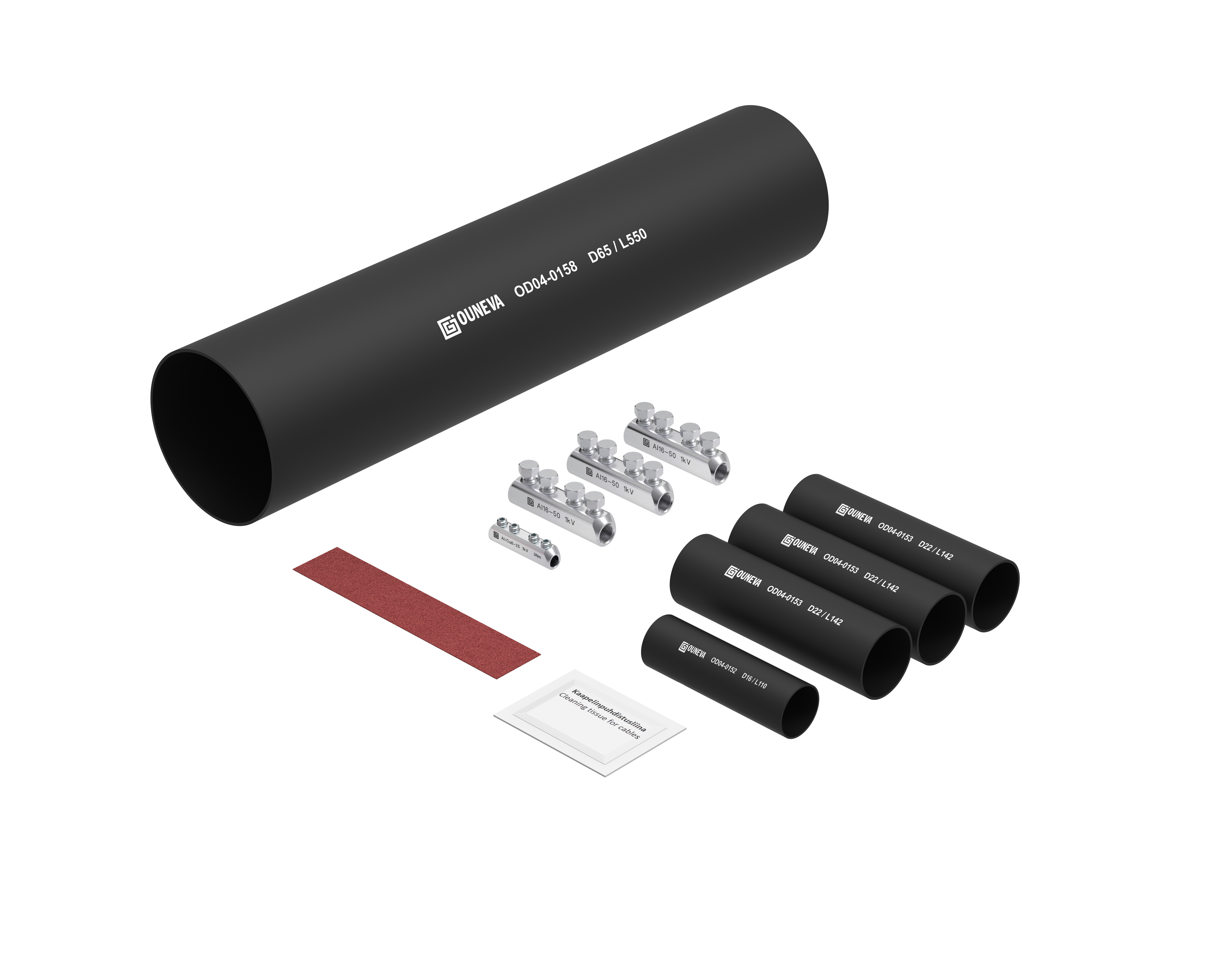

PJ extension kit contains four splices, four adhesive wire terminals, one adhesive cable terminal, sandpaper, and cable cleaning strip.
Purpose: Splicing 4-conductor cables with operating voltage of <1 kV.
Manufacturing materials- terminals: aluminum
- heat shrink tubes: modified polyethylene
- EN 61238-1:2003
- FI-certified terminals
Product details
Technical specifications
Product class (ETIM)Straight-through joint (EC001169)
Rated voltage U0/U (Um)Other
ModelHeat-shrink
Insulating materialPlastic
For connection of paper- with plastic insulated cablesno
Number of conductors4
Nominal cross section conductor16-50 mm²
Mining sector approvalno
With concentric shieldingyes
Suitable forOther
Connection accessories includedScrew connector
Halogen freeno
Product codes
SAPCFM078
STK5201287
PLC5201287
GTIN/EAN6410052012878
Manufacturer part numberVB04-0022
Vendor material number5201287
Basic information
Package measurements (L x W x H)560 x 130 x 70 mm
Package volume5.096 l
Package weight0.37 kg
Base uniteach
Package units1 / 50
Package contents–
UNSPSC39121718
BrandOUNEVA
VendorOUNEVA OY
The country of origin stated by the supplierFinland
Documents (6)
Images
Brochures & documents
Links
Environment and safety
Features
Fully recyclable packagingRecyclable
Cr (VI) freeYes
