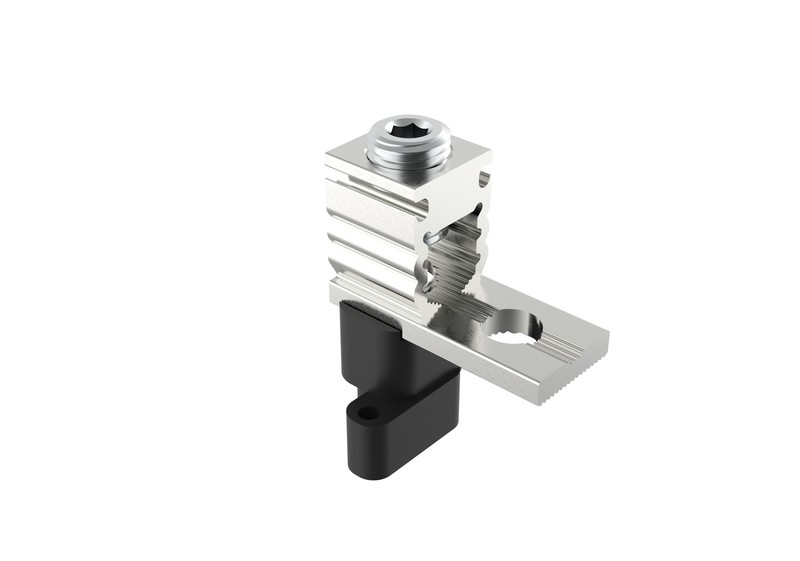

UNIVERSAL CONNECTOR OTE 1x6-95 AL/CU
Product code
1912309
OTE-insulated universal connector
OTE universal connectors are designed for connecting aluminum and copper cables. The connectors are used in electrical panels and equipment connections. The connector is made of tin-coated aluminum. The insulation base is made of polyamide. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve6 - 95 mm²
Connectable conductor cross section fine-strand with cable end sleeve6 - 95 mm²
Connectable conductor cross section multi-wired6 - 95 mm²
Rated current In245 A
Rated voltage690 V
Type of electrical connection 1Screw connection
Mounting methodOther
Material insulation bodyThermoplastic
Operating temperature80 - 80 °C
ColourOther
Product codes
SAPDIZ216
STK1912309
PLC1912309
GTIN/EAN6410019123098
Manufacturer part numberVC04-0003
Vendor material number1912309
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.114 l
Package weight0.036 kg
Base uniteach
Package units30
Package contents–
UNSPSC39121421
BrandOUNEVA
VendorOUNEVA OY
The country of origin stated by the supplierFinland
