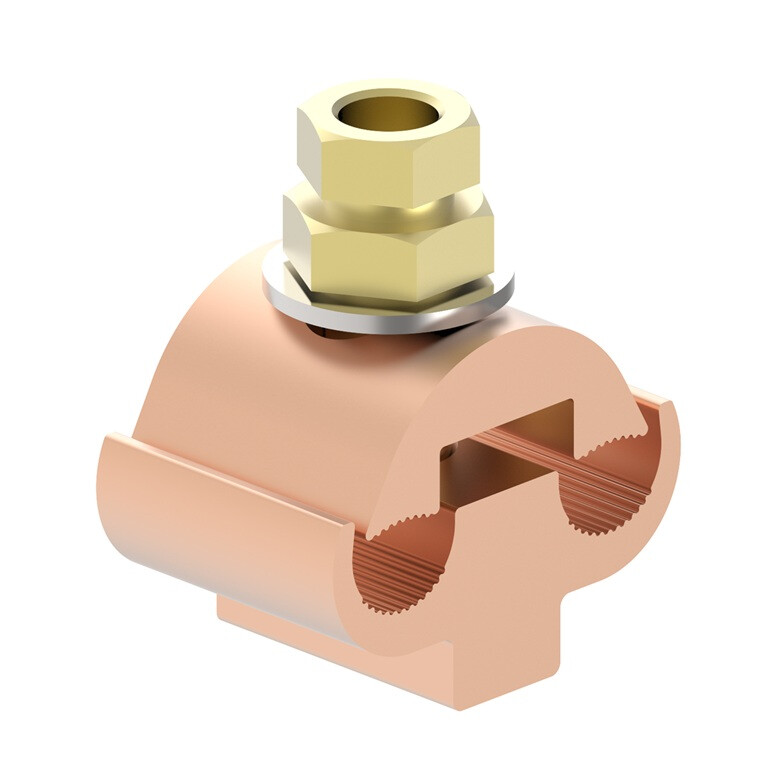

MATE-UP CONNECTOR CU 10-70 / 10-70 MM2
Product code
5040360
A touch connector is used for connecting and branching copper conductors underground or overhead in locations where the joint is not subjected to mechanical tension. A torque screw ensures the correct tightening torque. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Branch terminal (EC001062)
Nominal cross section main conductor, SE10 - 70 mm²
Nominal cross section main conductor, SM10 - 70 mm²
Nominal cross section branch conductor, SE/RE10 - 70 mm²
Nominal cross section branch conductor, SM/RM10 - 70 mm²
Material main conductorCopper
Material branch conductorCopper
Terminal insulatedno
Clamping channel opening main conductorBoth sides open
Clamping channel opening branch conductorBoth sides open
Surface protectionBare
Type of connectionScrew connection
Product codes
SAPDPT839
STK5040360
PLC5040360
GTIN/EAN6430051863349
Manufacturer part numberVF01-0004
Vendor material number5040360
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.246 l
Package weight0.161 kg
Base uniteach
Package units25
Package contents–
UNSPSC39121717
BrandOUNEVA
VendorOUNEVA OY
The country of origin stated by the supplierFinland
