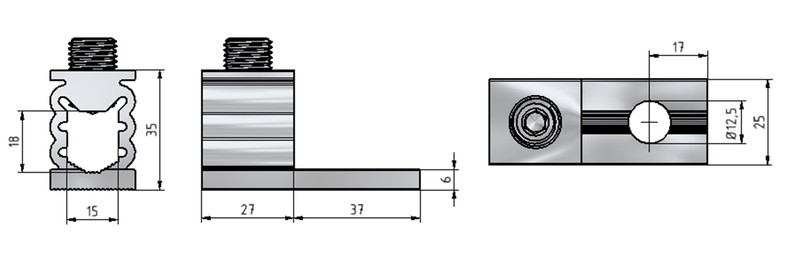

UNIVERSAL CONNECTOR OT 16-120 Al/Cu
Product code
1912301
Ounevan OT universal connectors are designed for connections of Al and Cu conductors. The connectors are used in electrical equipment and devices. OT connectors are manufactured from tin-plated aluminum. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve16-120 mm²
Connectable conductor cross section fine-strand with cable end sleeve16-120 mm²
Connectable conductor cross section multi-wired16-120 mm²
Rated current In280 A
Rated voltage690 V
Type of electrical connection 1Screw connection
Suitable for conductor materialAluminium/copper
Mounting methodOther
Material insulation bodyNone
Operating temperature80-80 °C
Explosion-tested version 'Ex e'no
ColourOther
Product codes
SAPGBG167
STK1912301
PLC1912301
GTIN/EAN6410019123012
Manufacturer part numberVC02-0003
Vendor material number1912301
Basic information
Package measurements (L x W x H)65 x 25 x 40 mm
Package volume0.065 l
Package weight0.06 kg
Base uniteach
Package units1 / 30
Package contents–
UNSPSC39121408
BrandOUNEVA
VendorOUNEVA OY
The country of origin stated by the supplierFinland
