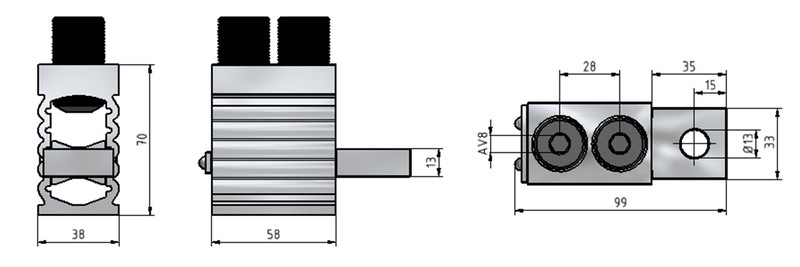

UNIVERSAL CONNECTOR OT 2x(70-240) Al/Cu
Product code
1912302
Ounevan OT universal connectors are designed for connections of Al and Cu conductors. The connectors are used in electrical equipment and devices. OT connectors are manufactured from tin-plated aluminum. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve70-240 mm²
Connectable conductor cross section fine-strand with cable end sleeve70-240 mm²
Connectable conductor cross section multi-wired70-240 mm²
Rated current In630 A
Rated voltage690 V
Type of electrical connection 1Screw connection
Suitable for conductor materialAluminium/copper
Mounting methodOther
Material insulation bodyNone
Operating temperature80-80 °C
Explosion-tested version 'Ex e'no
ColourOther
Product codes
SAPCEM665
STK1912302
PLC1912302
GTIN/EAN6410019123029
Manufacturer part numberVC02-0004
Vendor material number1912302
Basic information
Package measurements (L x W x H)100 x 37 x 75 mm
Package volume0.278 l
Package weight0.46 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC39121421
BrandOUNEVA
VendorOUNEVA OY
The country of origin stated by the supplierFinland
Documents (7)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0455
GWP, uniteach
Source for GWP dataEPD
