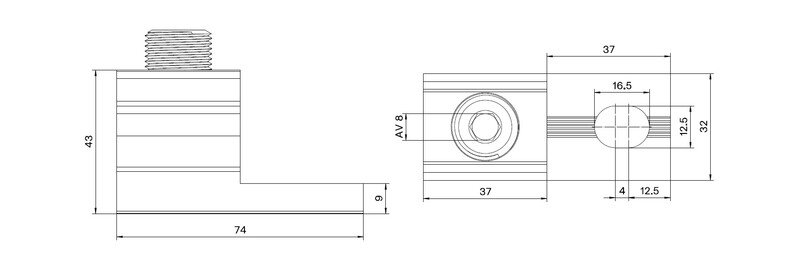

UNIVERSAL CONNECTOR OT 35-240 Al/Cu
Product code
1914395
Ounevan OT universal connectors are designed for connections of aluminum and copper conductors. The connectors are used in electrical equipment and devices. OT connectors are manufactured from tin-plated aluminum. The connectors are manufactured in Finland. For connecting aluminum and copper (Al/Cu) cables Al/Cu 35 - 240 mm² This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve35 - 240 mm²
Connectable conductor cross section fine-strand with cable end sleeve35 - 240 mm²
Connectable conductor cross section multi-wired35 - 240 mm²
Rated current In425 A
Rated voltage690 V
Type of electrical connection 1Screw connection
Number of levels1
Number of clamp positions per level1
Suitable for conductor materialAluminium/copper
Mounting methodOther
Material insulation bodyNone
Operating temperature-20 - 80 °C
Explosion-tested version 'Ex e'no
ColourOther
Product codes
SAPDML915
STK1914395
PLC1914395
GTIN/EAN6430051863028
Manufacturer part numberVC02-0147
Vendor material number1914395
Basic information
Package measurements (L x W x H)75 x 30 x 50 mm
Package volume0.113 l
Package weight0.11 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC39121408
BrandOUNEVA
VendorOUNEVA OY
The country of origin stated by the supplierFinland
Documents (6)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0109
GWP, uniteach
Source for GWP dataEPD
