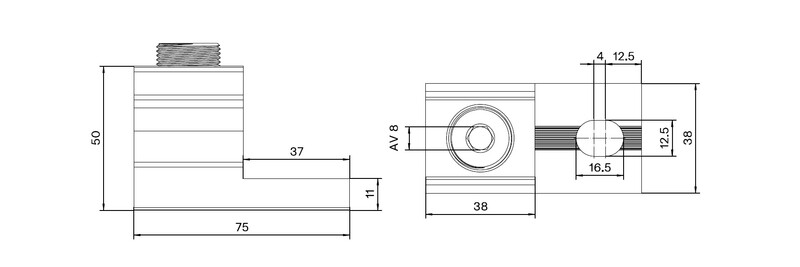

UNIVERSAL CONNECTOR OT OT 1XAL/CU 95-300MM
Product code
1914396
Ounevan OT universal connectors are designed for connections of Al and Cu conductors. The connectors are used in electrical equipment and devices. OT connectors are manufactured from tin-plated aluminum. The connectors are manufactured in Finland. For connecting aluminum and copper (Al/Cu) cables Al/Cu 95 - 300 mm² This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve95 - 300 mm²
Connectable conductor cross section fine-strand with cable end sleeve95 - 300 mm²
Connectable conductor cross section multi-wired95 - 300 mm²
Rated current In490 A
Rated voltage690 V
Type of electrical connection 1Screw connection
Number of levels1
Number of clamp positions per level1
Suitable for conductor materialAluminium/copper
Mounting methodOther
Material insulation bodyNone
Operating temperature-20 - 80 °C
Explosion-tested version 'Ex e'no
ColourOther
Product codes
SAPDMT168
STK1914396
PLC1914396
GTIN/EAN6430051863035
Manufacturer part numberVC02-0148
Vendor material number1914396
Basic information
Package measurements (L x W x H)75 x 60 x 38 mm
Package volume0.171 l
Package weight0.16 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC39121421
BrandOUNEVA
VendorOUNEVA OY
The country of origin stated by the supplierFinland
Documents (6)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0158
GWP, uniteach
Source for GWP dataEPD
