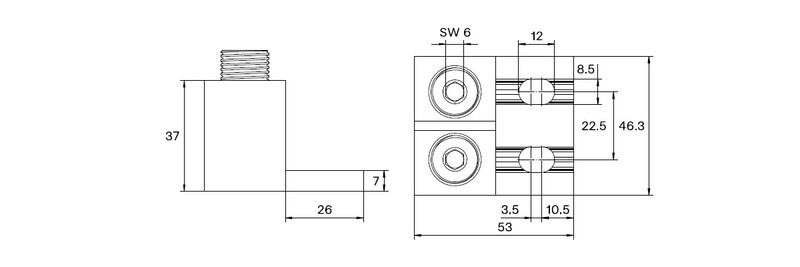

UNIVERSAL CONNECTOR OT OT 2XAL/CU 25-150MM 2XM8
Product code
1914399
Ounevan OT universal connectors are designed for connections of aluminum and copper conductors. The connectors are used in electrical equipment and devices. OT connectors are manufactured from tin-plated aluminum. The connectors are manufactured in Finland. For connecting aluminum and copper (Al/Cu) cables of 25 - 150 mm² This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve25 - 150 mm²
Connectable conductor cross section fine-strand with cable end sleeve25 - 150 mm²
Connectable conductor cross section multi-wired25 - 150 mm²
Rated current In640 A
Rated voltage690 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level2
Suitable for conductor materialAluminium/copper
Mounting methodOther
Material insulation bodyNone
Operating temperature-20 - 80 °C
Explosion-tested version 'Ex e'no
ColourOther
Product codes
SAPDMT171
STK1914399
PLC1914399
GTIN/EAN6430051863066
Manufacturer part numberVC02-0151
Vendor material number1914399
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.176 l
Package weight0.123 kg
Base uniteach
Package units20
Package contents–
UNSPSC39121421
BrandOUNEVA
VendorOUNEVA OY
The country of origin stated by the supplierFinland
Documents (6)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0122
GWP, uniteach
Source for GWP dataEPD
