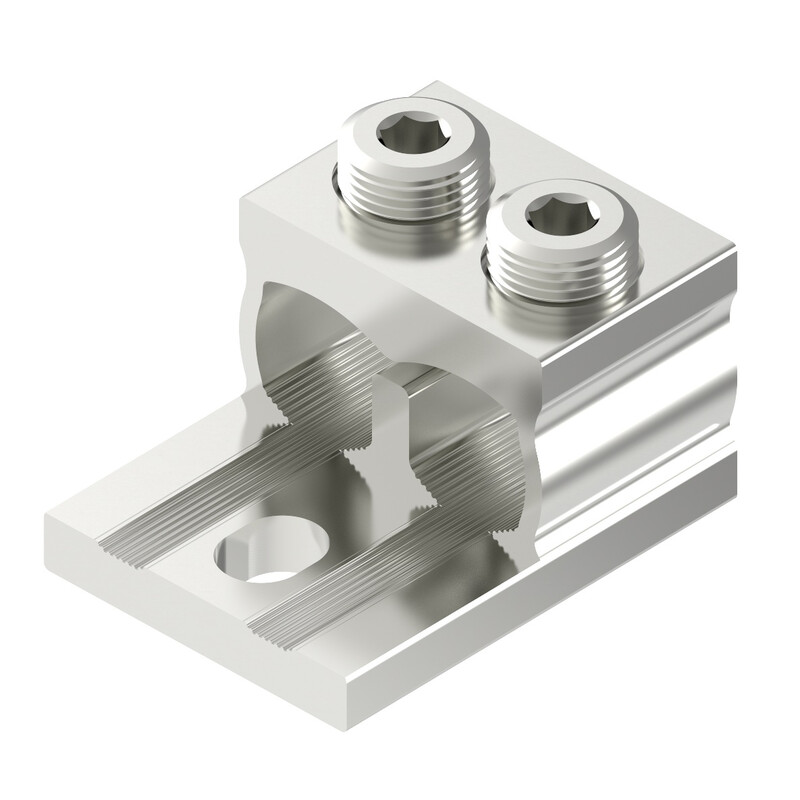

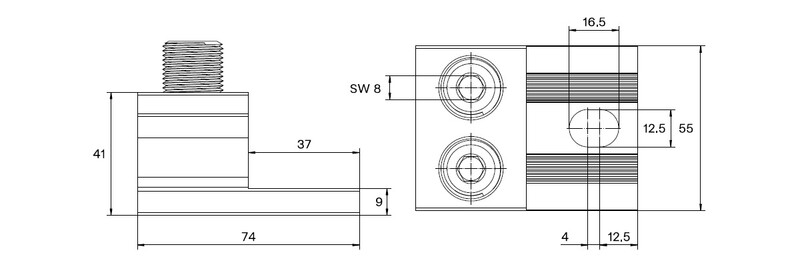

UNIVERSAL CONNECTOR OT OT 2XAL/CU 35-240MM
Product code
1914392
Ounevan OT universal connectors are designed for connections of aluminum and copper conductors. The connectors are used in electrical equipment and devices. OT connectors are manufactured from tin-plated aluminum. The connectors are manufactured in Finland. For connecting aluminum and copper (Al/Cu) cables Al/Cu 35 - 240 mm² This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve35 - 240 mm²
Connectable conductor cross section fine-strand with cable end sleeve35 - 240 mm²
Connectable conductor cross section multi-wired35 - 240 mm²
Rated current In850 A
Rated voltage690 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level2
Suitable for conductor materialAluminium/copper
Mounting methodOther
Material insulation bodyNone
Operating temperature-20 - 80 °C
Explosion-tested version 'Ex e'no
ColourOther
Product codes
SAPDMT165
STK1914392
PLC1914392
GTIN/EAN6430051862991
Manufacturer part numberVC02-0138
Vendor material number1914392
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.353 l
Package weight0.239 kg
Base uniteach
Package units10
Package contents–
UNSPSC39121421
BrandOUNEVA
VendorOUNEVA OY
The country of origin stated by the supplierFinland
