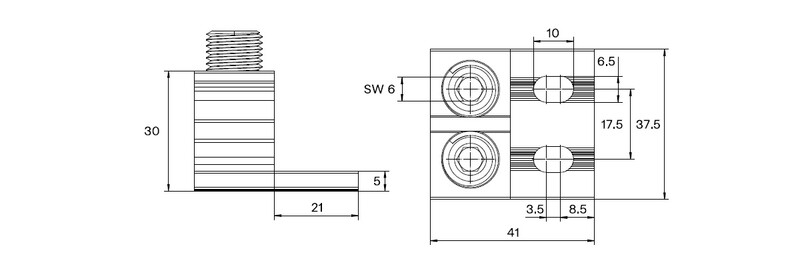

UNIVERSAL CONNECTOR OT OT 2XAL/CU 6-95MM 2XM6
Product code
1914398
Ounevan OT universal connectors are designed for connections of Al and Cu conductors. The connectors are used in electrical equipment and devices. OT connectors are manufactured from tin-plated aluminum. The connectors are manufactured in Finland. For connecting aluminum and copper (Al/Cu) cables Al/Cu 6 - 95 mm² This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve6 - 95 mm²
Connectable conductor cross section fine-strand with cable end sleeve6 - 95 mm²
Connectable conductor cross section multi-wired6 - 95 mm²
Rated current In490 A
Rated voltage690 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level2
Suitable for conductor materialAluminium/copper
Mounting methodOther
Material insulation bodyNone
Operating temperature-20 - 80 °C
Explosion-tested version 'Ex e'no
ColourOther
Product codes
SAPDMT170
STK1914398
PLC1914398
GTIN/EAN6430051863059
Manufacturer part numberVC02-0150
Vendor material number1914398
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.118 l
Package weight0.072 kg
Base uniteach
Package units30
Package contents–
UNSPSC39121421
BrandOUNEVA
VendorOUNEVA OY
The country of origin stated by the supplierFinland
Documents (6)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0071
GWP, uniteach
Source for GWP dataEPD
