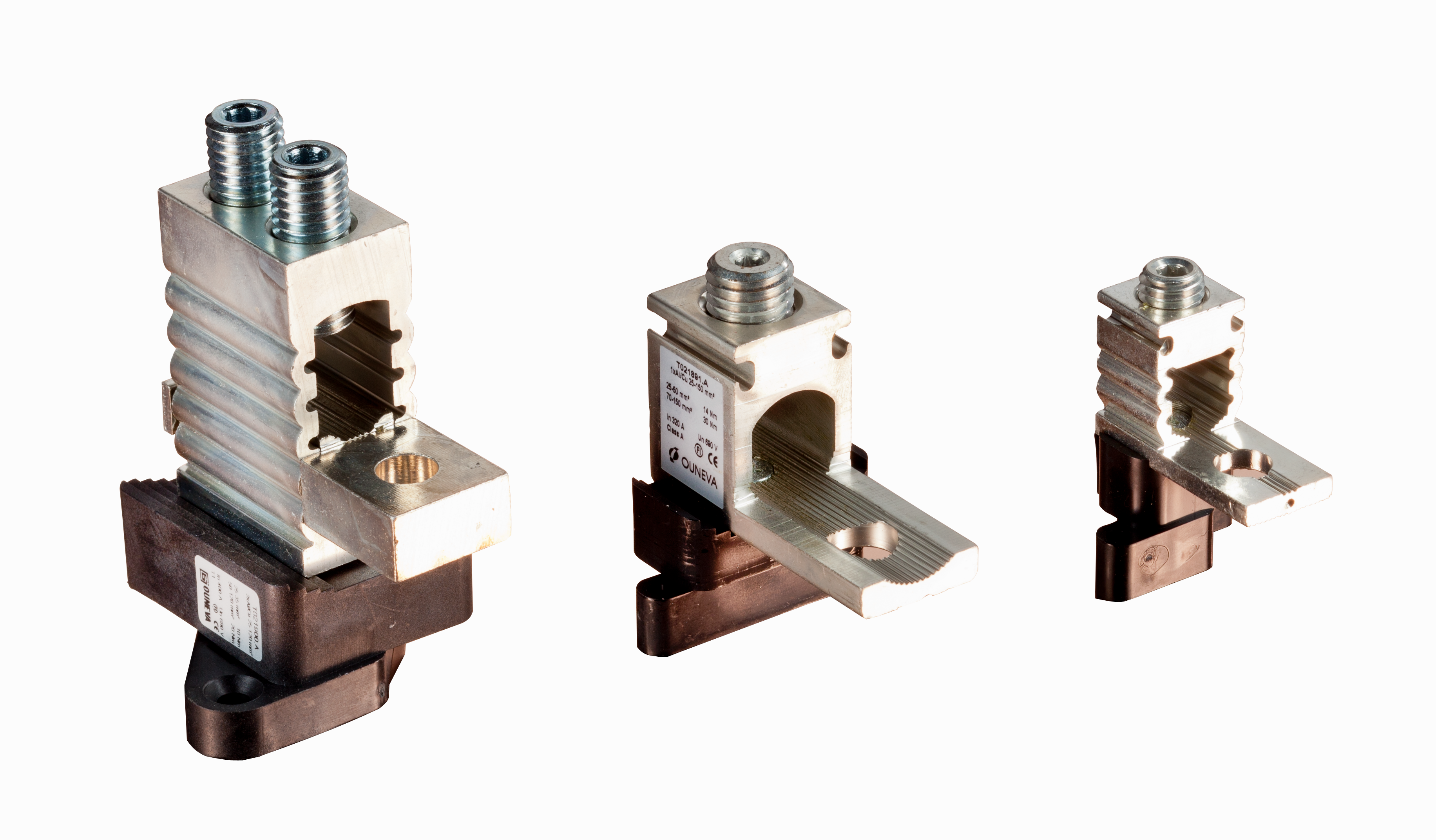

UNIVERSAL CONNECTOR OTE 16-120 AL/CU
Product code
5202433
Ounevan OTE insulated terminal lugs are designed for connecting aluminum and copper cables (1.5–300 mm²). Both the terminal and the tightening screw are made of aluminum and tin-plated. OTE terminals are equivalent to OT terminals (page 17), but they are equipped with an insulating base. The terminals are screw-mounted and can be installed side by side by connecting the insulating bases together. Typical applications include electrical devices and equipment. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve16 - 120 mm²
Connectable conductor cross section fine-strand with cable end sleeve16 - 120 mm²
Connectable conductor cross section multi-wired16 - 120 mm²
Rated current In280 A
Rated voltage690 V
Type of electrical connection 1Screw connection
Mounting methodOther
Material insulation bodyThermoplastic
Operating temperature80 - 80 °C
Explosion-tested version 'Ex e'no
ColourOther
Product codes
SAPASE209
STK5202433
PLC5202433
GTIN/EAN6410052024338
Manufacturer part numberVC04-0004
Vendor material number5202433
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume6.15 l
Package weight0.067 kg
Base uniteach
Package units30
Package contents–
UNSPSC39121718
BrandOUNEVA
VendorOUNEVA OY
The country of origin stated by the supplierFinland
