UNIVERSAL CONNECTOR OTL 1xAL/CU 2,5-35mm2 BLACK
Product code
1912355
OTL universal connector
OTL universal connectors are designed for connecting and branching aluminum and copper cables. The connector housing is tin-plated aluminum. The enclosure is made of UL94 V0-rated polyamide. The nominal voltage of the connectors is 1000 V AC / 1500 V DC IEC. The connectors are UL-certified for 1000 V. The connectors are manufactured in Finland.
For connecting aluminum and copper (Al/Cu) cables
Al/Cu 2.5 - 35 mm² This product description is an automated translation of the original Finnish description.
OTL universal connectors are designed for connecting and branching aluminum and copper cables. The connector housing is tin-plated aluminum. The enclosure is made of UL94 V0-rated polyamide. The nominal voltage of the connectors is 1000 V AC / 1500 V DC IEC. The connectors are UL-certified for 1000 V. The connectors are manufactured in Finland.
For connecting aluminum and copper (Al/Cu) cables
Al/Cu 2.5 - 35 mm² This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve2.5 - 25 mm²
Connectable conductor cross section fine-strand with cable end sleeve2.5 - 25 mm²
Connectable conductor cross section solid-core2.5 - 35 mm²
Connectable conductor cross section multi-wired2.5 - 35 mm²
Rated current In135 A
Rated voltage1000 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level1
Suitable for conductor materialAluminium/copper
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-25 - 80 °C

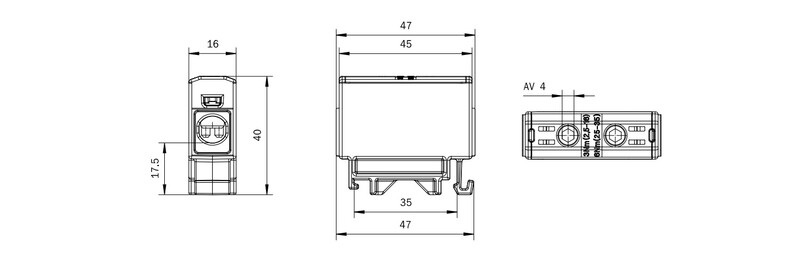

Width16 mm
Product codes
SAPDFL227
STK1912355
PLC1912355
GTIN/EAN6410019123555
Manufacturer part numberVC05-0244
Vendor material number1912355
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.05 l
Package weight0.03 kg
Base uniteach
Package units54
Package contents–
UNSPSC39121421
BrandOUNEVA
VendorOUNEVA OY
The country of origin stated by the supplierFinland
Documents (8)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0021
GWP, uniteach
Source for GWP dataEPD
