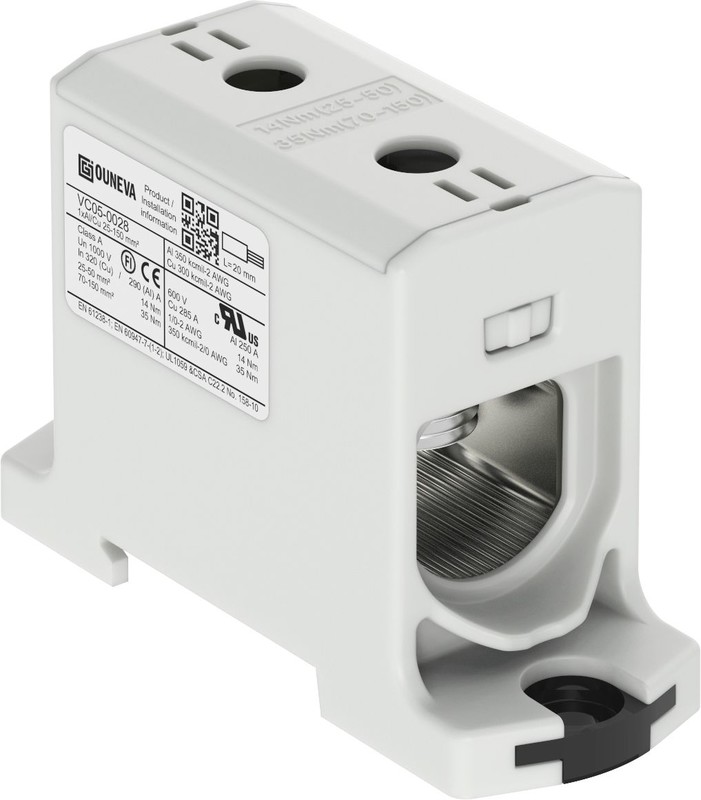

UNIVERSAL CONNECTOR OTL 1xAL/CU, 25-150mm2 GREY
Product code
1914294
OTL universal terminal block gray 25-150mm2 1xAl/Cu 100 pcs pack This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve25-120 mm²
Connectable conductor cross section fine-strand with cable end sleeve25-120 mm²
Connectable conductor cross section solid-core25-150 mm²
Connectable conductor cross section multi-wired25-150 mm²
Rated current In320 A
Rated voltage1000 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level1
Suitable for conductor materialAluminium/copper
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-25-80 °C
Width31 mm
Product codes
SAPCKZ270
STK1914294
PLC1914294
GTIN/EAN6410019142945
Manufacturer part numberVC05-0208
Vendor material number1914294
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.24 l
Package weight0.1 kg
Base uniteach
Package units100
Package contents–
UNSPSC39121421
BrandOUNEVA
VendorOUNEVA OY
The country of origin stated by the supplierFinland
