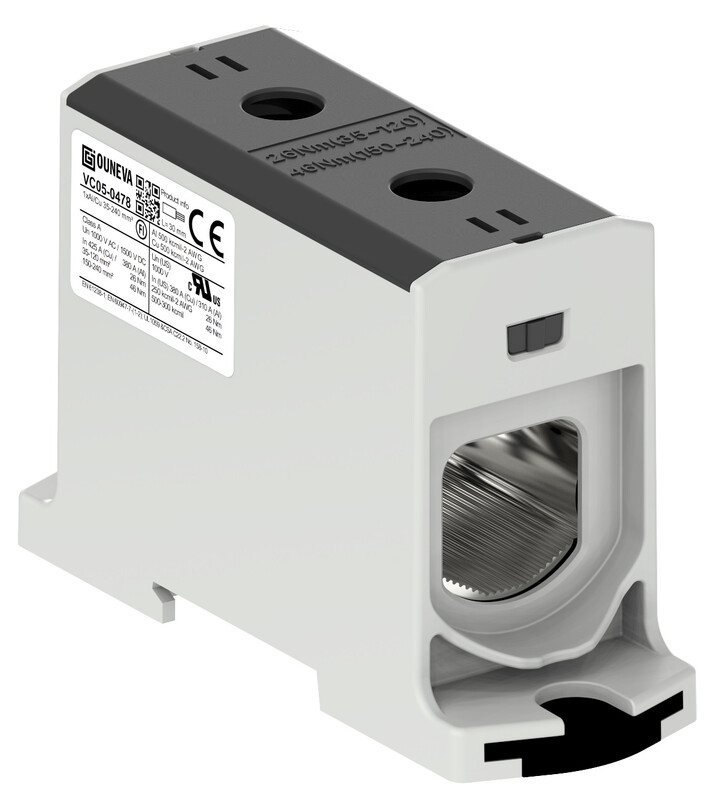

UNIVERSAL CONNECTOR OTL 1xAL/CU 35-240mm2 BLACK
Product code
1914341
OTL universal connector
OTL universal connectors are designed for connecting and branching aluminum and copper cables. The connector housing is tin-plated aluminum. The enclosure is made of UL94 V0-rated polyamide. The nominal voltage of the connectors is 1000 V AC / 1500 V DC IEC. The connectors are UL-certified for 1000 V. The connectors are manufactured in Finland.
For connecting aluminum and copper (Al/Cu) cables
Al/Cu 35 - 240 mm2 This product description is an automated translation of the original Finnish description.
OTL universal connectors are designed for connecting and branching aluminum and copper cables. The connector housing is tin-plated aluminum. The enclosure is made of UL94 V0-rated polyamide. The nominal voltage of the connectors is 1000 V AC / 1500 V DC IEC. The connectors are UL-certified for 1000 V. The connectors are manufactured in Finland.
For connecting aluminum and copper (Al/Cu) cables
Al/Cu 35 - 240 mm2 This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve35-185 mm²
Connectable conductor cross section fine-strand with cable end sleeve35-185 mm²
Connectable conductor cross section solid-core35-240 mm²
Connectable conductor cross section multi-wired35-240 mm²
Rated current In425 A
Rated voltage1000 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level1
Suitable for conductor materialAluminium/copper
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-25-80 °C

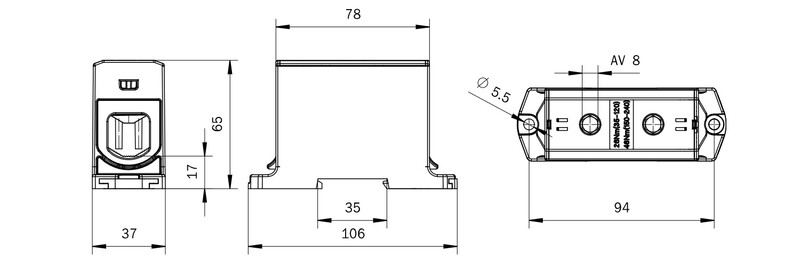

Width37 mm
Product codes
SAPDFL232
STK1914341
PLC1914341
GTIN/EAN6430051860133
Manufacturer part numberVC05-0478
Vendor material number1914341
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.347 l
Package weight0.204 kg
Base uniteach
Package units24
Package contents–
UNSPSC39121421
BrandOUNEVA
VendorOUNEVA OY
The country of origin stated by the supplierFinland
Documents (7)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0142
GWP, uniteach
Source for GWP dataEPD
