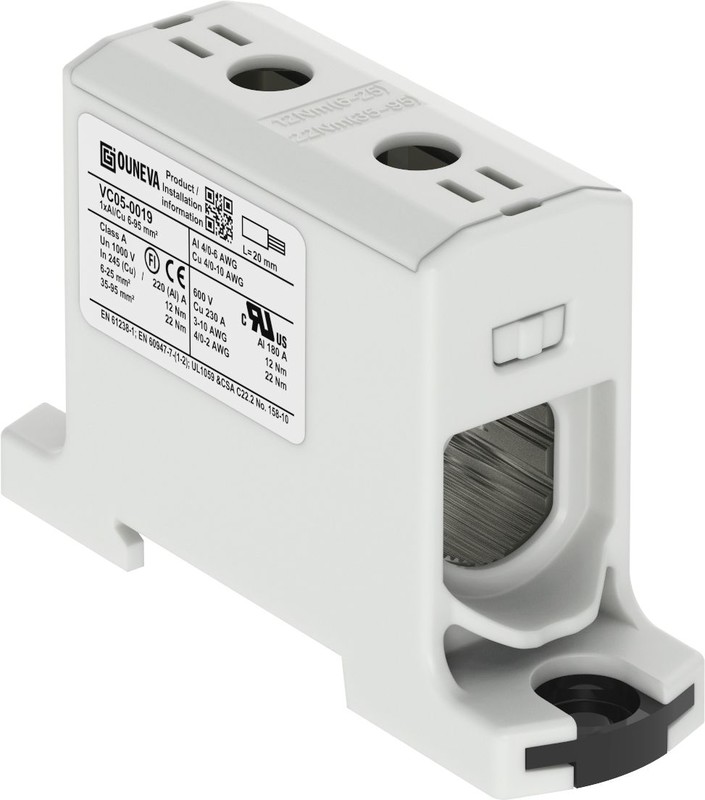

UNIVERSAL CONNECTOR OTL 1xAL/CU, 6-95mm2 GREY
Product code
1914293
OTL universal connector gray 6-95mm² 1xAl/Cu 250 pcs pack This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve6-70 mm²
Connectable conductor cross section fine-strand with cable end sleeve6-70 mm²
Connectable conductor cross section solid-core6-95 mm²
Connectable conductor cross section multi-wired6-95 mm²
Rated current In245 A
Rated voltage1000 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level1
Suitable for conductor materialAluminium/copper
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-25-80 °C
Width25 mm
Product codes
SAPCKZ272
STK1914293
PLC1914293
GTIN/EAN6410019142938
Manufacturer part numberVC05-0152
Vendor material number1914293
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.096 l
Package weight0.065 kg
Base uniteach
Package units250
Package contents–
UNSPSC39121421
BrandOUNEVA
VendorOUNEVA OY
The country of origin stated by the supplierFinland
