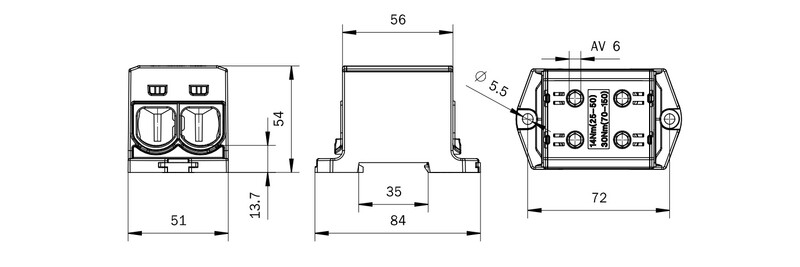

UNIVERSAL CONNECTOR OTL 2xAL/CU 25-150mm2 RED
Product code
1914344
OTL universal connector
OTL universal connectors are designed for connecting and branching aluminum and copper cables. The connector body is tin-plated aluminum. The housing is made of UL94 V0-rated polyamide. The nominal voltage of the connectors is 1000 V AC / 1500 V DC IEC. The connectors are UL-certified for 1000 V. The connectors are manufactured in Finland.
For connecting aluminum and copper (Al/Cu) cables
Al/Cu 25 - 150 mm2 This product description is an automated translation of the original Finnish description.
OTL universal connectors are designed for connecting and branching aluminum and copper cables. The connector body is tin-plated aluminum. The housing is made of UL94 V0-rated polyamide. The nominal voltage of the connectors is 1000 V AC / 1500 V DC IEC. The connectors are UL-certified for 1000 V. The connectors are manufactured in Finland.
For connecting aluminum and copper (Al/Cu) cables
Al/Cu 25 - 150 mm2 This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve25 - 120 mm²
Connectable conductor cross section fine-strand with cable end sleeve25 - 120 mm²
Connectable conductor cross section solid-core25 - 150 mm²
Connectable conductor cross section multi-wired25 - 150 mm²
Rated current In640 A
Rated voltage1000 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level2
Suitable for conductor materialAluminium/copper
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-25 - 80 °C
Width51 mm
Product codes
SAPDFL235
STK1914344
PLC1914344
GTIN/EAN6430051860164
Manufacturer part numberVC05-0481
Vendor material number1914344
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.347 l
Package weight0.108 kg
Base uniteach
Package units24
Package contents–
UNSPSC39121421
BrandOUNEVA
VendorOUNEVA OY
The country of origin stated by the supplierFinland
