UNIVERSAL CONNECTOR OTL 3xAL/CU 1,5-50mm2 RED
Product code
1914348
OTL universal connector
OTL universal connectors are designed for connecting and branching aluminum and copper cables. The connector body is tin-plated aluminum. The housing is made of UL94 V0-rated polyamide. The rated voltage of the connectors is 1000 V AC / 1500 V DC IEC. The connectors are UL-certified for 1000 V voltage. The connectors are manufactured in Finland.
For connecting aluminum and copper (Al/Cu) cables
Al/Cu 25 - 240 mm2 This product description is an automated translation of the original Finnish description.
OTL universal connectors are designed for connecting and branching aluminum and copper cables. The connector body is tin-plated aluminum. The housing is made of UL94 V0-rated polyamide. The rated voltage of the connectors is 1000 V AC / 1500 V DC IEC. The connectors are UL-certified for 1000 V voltage. The connectors are manufactured in Finland.
For connecting aluminum and copper (Al/Cu) cables
Al/Cu 25 - 240 mm2 This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve1.5-35 mm²
Connectable conductor cross section fine-strand with cable end sleeve1.5-35 mm²
Connectable conductor cross section solid-core1.5-50 mm²
Connectable conductor cross section multi-wired1.5-50 mm²
Rated current In320 A
Rated voltage1000 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level3
Suitable for conductor materialAluminium/copper
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-25-80 °C

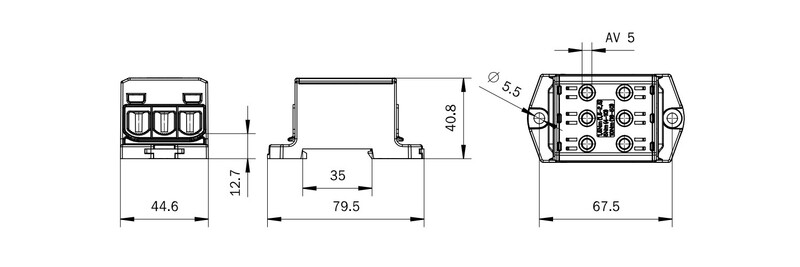

Width44.6 mm
Product codes
SAPDFL239
STK1914348
PLC1914348
GTIN/EAN6430051860201
Manufacturer part numberVC05-0485
Vendor material number1914348
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.246 l
Package weight0.117 kg
Base uniteach
Package units24
Package contents–
UNSPSC39121421
BrandOUNEVA
VendorOUNEVA OY
The country of origin stated by the supplierFinland
Documents (7)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0082
GWP, uniteach
Source for GWP dataEPD
