UNIVERSAL CONNECTOR OTL 5X1XAL/CU 1,5-16MM
Product code
1914403
OTL universal connectors are designed for connecting and branching aluminum and copper cables. The connector housing is tin-plated aluminum. The enclosure is made of UL94 V0-rated polyamide. The rated voltage of the connectors is 1000 V AC / 1500 V DC IEC. The connectors are manufactured in Finland.
For connecting aluminum and copper (Al/Cu) cables
Al/Cu 1.5 - 16 mm² This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve1.5 - 10 mm²
Connectable conductor cross section fine-strand with cable end sleeve1.5 - 10 mm²
Connectable conductor cross section solid-core1.5 - 16 mm²
Connectable conductor cross section multi-wired1.5 - 16 mm²
Rated current In82 A
Rated voltage1000 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level5
Suitable for conductor materialAluminium/copper
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-25 - 80 °C

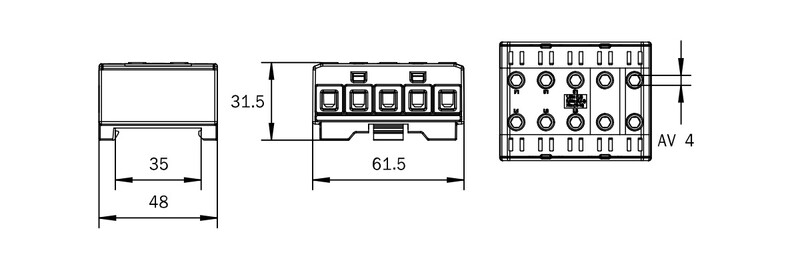

Width61.4 mm
Product codes
SAPDMT175
STK1914403
PLC1914403
GTIN/EAN6430051862649
Manufacturer part numberVC05-0547
Vendor material number1914403
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.272 l
Package weight0.079 kg
Base uniteach
Package units10
Package contents–
UNSPSC39121421
BrandOUNEVA
VendorOUNEVA OY
The country of origin stated by the supplierFinland
