UNIVERSAL CONNECTOR OTL OTL 2XAL/CU 95-300MM2 GREY
Product code
1914405
OTL universal connector
OTL universal connectors are designed for connecting and branching aluminum and copper cables. The connector body is made of tin-plated aluminum. The housing is manufactured from UL94 V0-rated polyamide. The nominal voltage of the connectors is 1000 V AC / 1500 V DC IEC. The connectors are manufactured in Finland.
For connecting aluminum and copper (Al/Cu) cables
Al/Cu 95 - 300 mm2 This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve95 - 240 mm²
Connectable conductor cross section fine-strand with cable end sleeve95 - 240 mm²
Connectable conductor cross section solid-core95 - 300 mm²
Connectable conductor cross section multi-wired95 - 300 mm²
Rated current In980 A
Rated voltage1000 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level2
Suitable for conductor materialAluminium/copper
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-25 - 80 °C

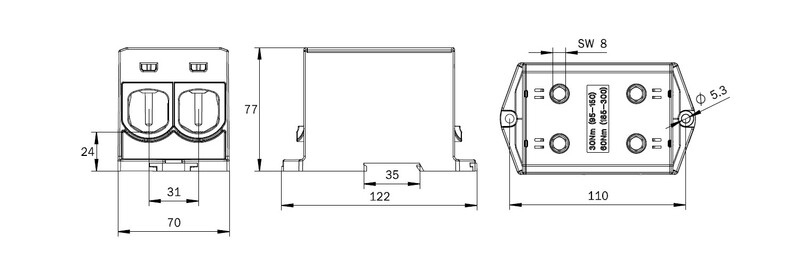

Width70 mm
Product codes
SAPDPT832
STK1914405
PLC1914405
GTIN/EAN6430051862205
Manufacturer part numberVC05-0542
Vendor material number1914405
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume1.661 l
Package weight0.657 kg
Base uniteach
Package units3
Package contents–
UNSPSC39121410
BrandOUNEVA
VendorOUNEVA OY
The country of origin stated by the supplierFinland
