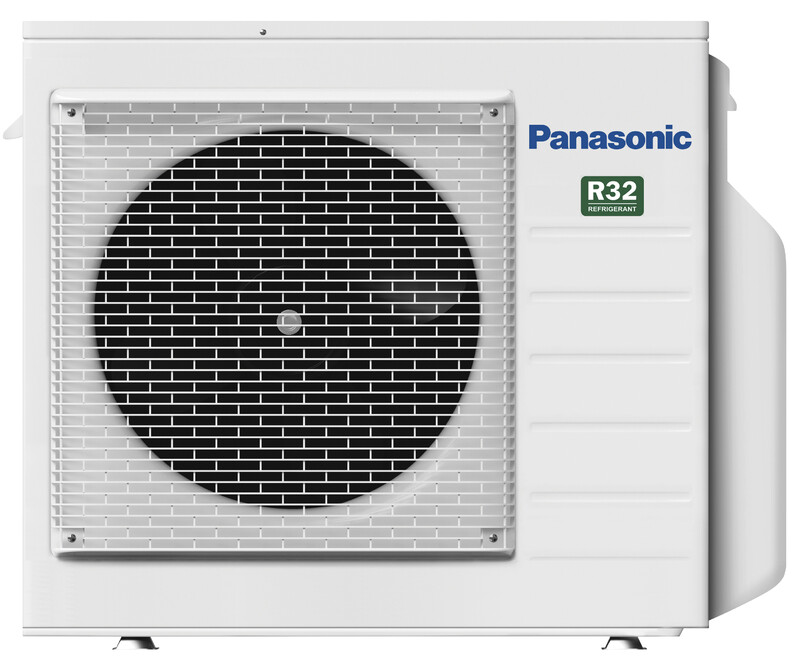

HEAT PUMP ATOA PANASONIC CU-3Z52CBE OUTDOOR UNIT
Product code
8108924
No product description available.
Product details
Technical specifications
Product class (ETIM)Air-conditioning split system - multi-split, complete (EC011579)
Operating principleCooling and heating
Type of refrigerantR32
Refrigerant pre-charge1.92 kg
Global warming potential (GWP)675
Inverter-controlledyes
Sound pressure level outdoor unit for cooling47 - 47 dB(A)
Sound pressure level outdoor unit for heating48 - 48 dB(A)
Nominal diameter fluid pipe1/4 inch
Outer pipe diameter of fluid pipe6.35 mm
Annual cooling energy consumption (350 hours - full load)209 kWh
Cooling input power0.36 - 2.18 kW
Heating input power0.32 - 2.5 kW
Total heating capacity1.6 - 8.5 kW
Total cooling capacity1.8 - 7.3 kW
Number of cooling circuits (compressors)1
Product codes
SAPDNS991
PLC8108924
GTIN/EAN5025232988044
Manufacturer part numberCU-3Z52CBE
Vendor material numberCU-3Z52CBE
Basic information
Package measurements (L x W x H)1050 x 490 x 890 mm
Package volume457.905 l
Package weight65 kg
Base uniteach
Package units1
Package contents–
UNSPSC40101806
BrandPANASONIC
VendorPANASONIC MARKETING EUROPE GMBH
Documents (2)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1105
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000442
