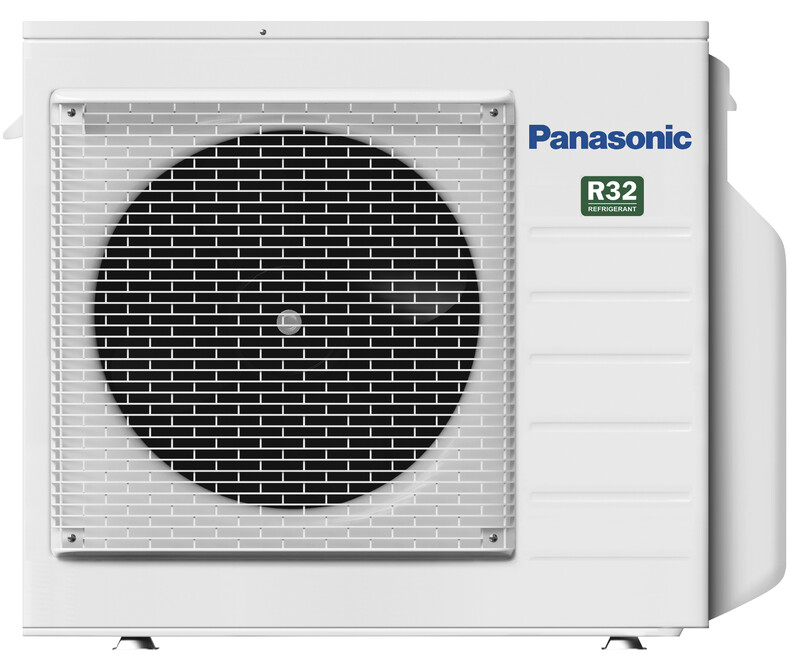

HEAT PUMP ATOA PANASONIC CU-4Z68CBE OUTDOOR UNIT
Product code
8108926
No product description available.
Product details
Technical specifications
Product class (ETIM)Air-conditioning split system - multi-split, complete (EC011579)
Operating principleCooling and heating
Type of refrigerantR32
Refrigerant pre-charge2.25 kg
Global warming potential (GWP)675
Inverter-controlledyes
Sound pressure level outdoor unit for cooling49 - 49 dB(A)
Sound pressure level outdoor unit for heating52 - 52 dB(A)
Nominal diameter fluid pipe1/4 inch
Outer pipe diameter of fluid pipe6.35 mm
Annual cooling energy consumption (350 hours - full load)280 kWh
Cooling input power0.34 - 2.47 kW
Heating input power0.36 - 2.68 kW
Total heating capacity1.7 - 10.6 kW
Total cooling capacity1.9 - 8.8 kW
Number of cooling circuits (compressors)1
Product codes
SAPDNS993
PLC8108926
GTIN/EAN5025232988068
Manufacturer part numberCU-4Z68CBE
Vendor material numberCU-4Z68CBE
Basic information
Package measurements (L x W x H)1050 x 490 x 890 mm
Package volume457.905 l
Package weight68 kg
Base uniteach
Package units1
Package contents–
UNSPSC40101806
BrandPANASONIC
VendorPANASONIC MARKETING EUROPE GMBH
Documents (2)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1156
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000442
