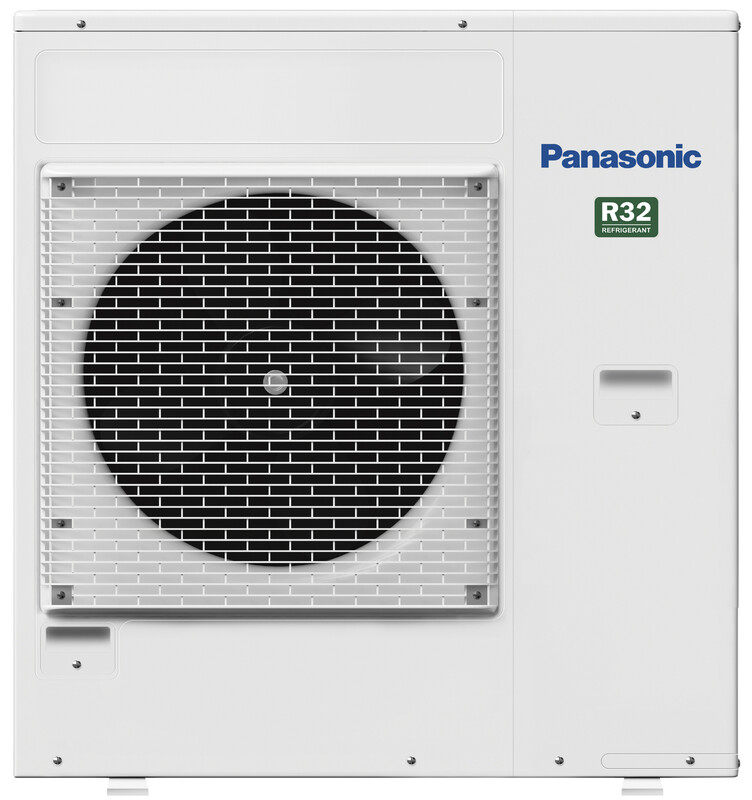

HEAT PUMP ATOA PANASONIC CU-5Z90CBE OUTDOOR UNIT
Product code
8108928
No product description available.
Product details
Technical specifications
Product class (ETIM)Air-conditioning split system - multi-split, complete (EC011579)
Operating principleCooling and heating
Type of refrigerantR32
Refrigerant pre-charge2.72 kg
Global warming potential (GWP)675
Inverter-controlledyes
Sound pressure level outdoor unit for cooling53 - 53 dB(A)
Sound pressure level outdoor unit for heating54 - 54 dB(A)
Nominal diameter fluid pipe1/4 inch
Outer pipe diameter of fluid pipe6.35 mm
Annual cooling energy consumption (350 hours - full load)371 kWh
Cooling input power0.55 - 3.86 kW
Heating input power0.5 - 4.24 kW
Total heating capacity2.48 - 14.5 kW
Total cooling capacity2.9 - 11.5 kW
Number of cooling circuits (compressors)1
Product codes
SAPDNS996
PLC8108928
GTIN/EAN5025232988082
Manufacturer part numberCU-5Z90CBE
Vendor material numberCU-5Z90CBE
Basic information
Package measurements (L x W x H)1070 x 510 x 1140 mm
Package volume622.098 l
Package weight89 kg
Base uniteach
Package units1
Package contents–
UNSPSC40101806
BrandPANASONIC
VendorPANASONIC MARKETING EUROPE GMBH
Documents (2)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1513
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000442
