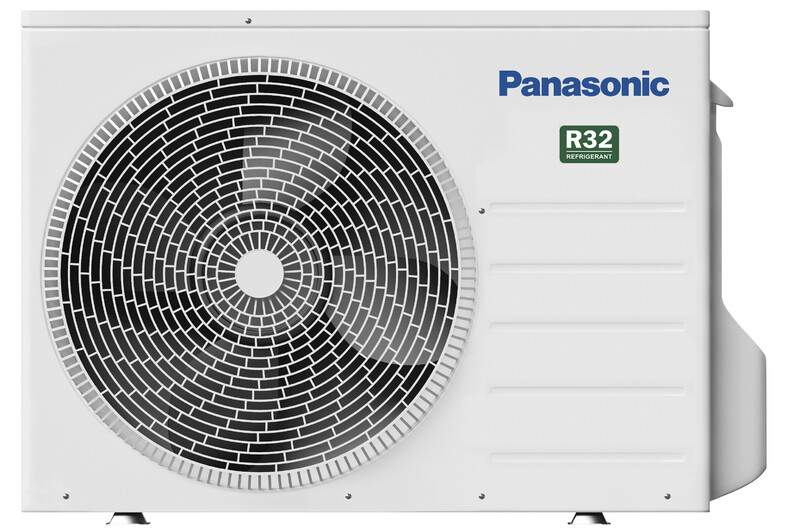

HEAT PUMP ATOA PANASONIC CU-TZ60CKE OUTDOOR UNIT
Product code
8108939
No product description available.
Product details
Technical specifications
Product class (ETIM)Air-conditioning split system - multi-split, complete (EC011579)
Operating principleCooling and heating
Type of refrigerantR32
Refrigerant pre-charge0.82 kg
Global warming potential (GWP)675
Inverter-controlledyes
Sound pressure level outdoor unit for cooling49 - 49 dB(A)
Sound pressure level outdoor unit for heating51 - 51 dB(A)
Nominal diameter fluid pipe1/4 inch
Outer pipe diameter of fluid pipe6.35 mm
Annual cooling energy consumption (350 hours - full load)304 kWh
Cooling input power0.25 - 2.3 kW
Heating input power0.21 - 2.3 kW
Total heating capacity8.2 - 8.2 kW
Total cooling capacity6.6 - 6.6 kW
Fuse size of the device16 A
Product codes
SAPDNS986
PLC8108939
GTIN/EAN5025232988211
Manufacturer part numberCU-TZ60CKE
Vendor material numberCU-TZ60CKE
Basic information
Package measurements (L x W x H)955 x 670 x 420 mm
Package volume268.737 l
Package weight39 kg
Base uniteach
Package units1
Package contents–
UNSPSC40101806
BrandPANASONIC
VendorPANASONIC MARKETING EUROPE GMBH
Documents (2)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)663
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000442
